KC C-Series C2 2in LED Backup Flood 2-Light System Universal
KC's C2 Backup light system uses an ultra-wide 120-degree Flood Beam Pattern to provide powerful peripheral illumination around your vehicle, improving nighttime visibility when reversing. Includes extended wiring harness for easy install.
FEATURES
-2 x 20W 2" C2 LED Area Flood Backup Lights
-Durable Diecast 6063 Aluminum Housing
-UV Resistant Black Powder Coated Housing
-Dual Oversized Heat Sink Design for Cooler, Brighter and Longer Lasting LED Performance
-Gore Military Grade Breather Membrane to prevent condensation and entry of dust/contaminants
-Optically Clear and Shatter Proof Lexan Lens
-Ideal for Illuminating Immediate Areas as a Work or Effective Backup Reverse light
-120° Area Flood Beam Pattern For Evenly Distributed Lighting
LIGHT PERFORMANCE (PER LIGHT)
-RAW Lumens: 2,200 lm
-LUX @ 10 meters: 27 lx
-Candela: 2,700 cd
-Beam Distance (Meters): 104m
SPECIFICATIONS (PER LIGHT)
-Wattage: 20W
-LED Source: CREE XMK
-LED Color: 6000K
-Amp Draw: 1.6A
-Voltage: 9V-36V
-IP Rating: IP67
-Product Dimensions: W - 2.85" x H - 2.21/1.91" x D - 2.17"

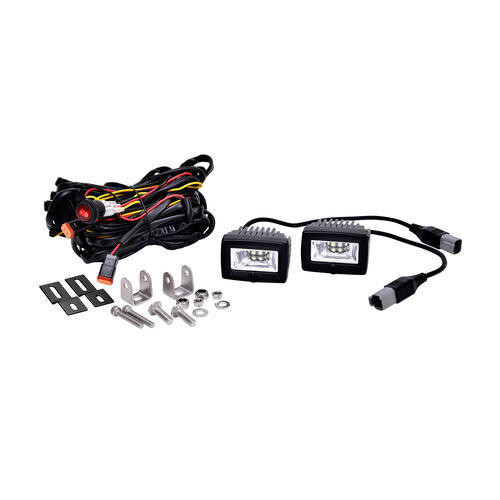

PARTS INCLUDED
-(2) 20W 2" C2 LED C-Series LED Flood Lights
-(2) Z Brackets
-Wiring Harness w/ Weatherproof DT Connectors and Switch
OPTICAL PERFORMANCE AND LED EFFICIENCY
KC's C2 utilizes ultra-wide 120-degree flood reflector optics to provide smooth and evenly distributed light across a horizontal field of vision. This light is ideal for illuminating immediate areas as a work or flood light, and also as an effective reverse backup light for all vehicle types.
DURABLE CONSTRUCTION FOR RELIABLE LIGHT PERFORMANCE
Constructed from a lightweight military-grade (US MIL-810-STD) IP67 rated sealed Aluminum Die-Cast Housing with shatterproof GE Lexan lens for an impenetrable, waterproof housing. The C2 flood light was built to last, utilizing advanced Dual Heatsink design for maximum heat dissipation to ensure optimum light performance for up to 50,000 hours.
- Add-On:
- N/A
- Amp Draw:
- 1.6A
- Beam Distance [m]:
- 104m
- Beam Pattern:
- Flood
- Candela:
- 2,700 Cd
- Color Temperature:
- 6000K
- IP Rating:
- IP67
- LED Color:
- 6000K
- LED Source:
- CREE XMK
- Light Temp:
- 6000K
- Lumens:
- 2200
- LUX:
- 27
- LUX @ 10m:
- 27 lx
- Parts Included:
- (2) 20W 2 in C2 LED C-Series LED Scene Lights, Performance Wiring Harness w/ weatherproof DT Connectors and Switch
- Product Dimensions:
- W 2.85 in x H 2.21/1.91 in x D 2.17 in
- Raw Lumens:
- 2,200 lm
- Title:
- KC Hilites 2 in C-Series C2 LED - 2-Light System - Backup - 20W Flood Beam
- Voltage [V]:
- 9V-36V
- Wattage:
- 20W
- California Prop 65 Notice:
- No
