FOX devotes countless hours of research and development to design race-winning suspension that withstands incredible punishment and provides consistent performance you can rely on. Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our shocks will give you the damping performance, suspension control and proper spring rate to get the job done.
- Body Diameter [in]:
- 3
- Adjuster Type:
- External Bypass Clicker - Gen 2
- Bottom Mount:
- Eyelet
- Body Material:
- Steel
- Compressed Length [in]:
- 20.60
- California Prop 65 Notice:
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Fox Catalog:
- OFFROAD
- Eyelet Length (in):
- 2.00
- Mounting:
- 1/2 x 1-1/2
- Label Name:
- 3.0 FRS, EXBP, 3T, R/R, 12", RH
- Body Finish:
- FOX Grey Cerakote
- Series:
- Factory Race
- Reservoir Type:
- Remote
- Bypass Tubes:
- 3
- Top Mount:
- Eyelet
- Title:

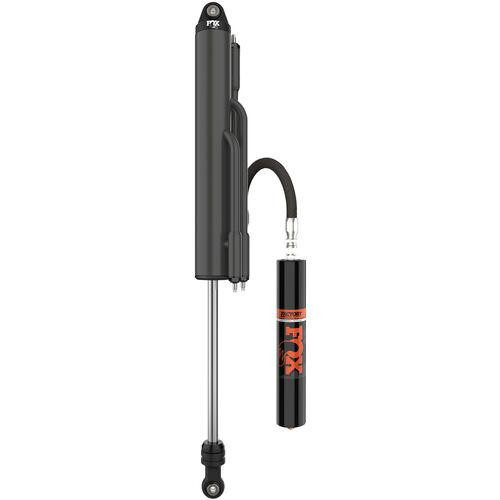

- FACTORY RACE 3.0 X 12 EXTERNAL BYPASS (3 TUBE) REMOTE SHOCK (RIGHT)
- Extended Length [in]:
- 32.51
- Valving:
- 807-24-600
- Type:
- External Bypass
- Hose:
- -10 x 28.00
- Reservoir Dimensions:
- 2.55 x 10.00
- Shaft Size [in]:
- 7/8
- Travel [in]:
- 11.91
- LTL:
- N
- Supplier Order ID:
- 873287
- Supplier Part Number:
- fox981-30-407-R
- Country of Origin (Primary):
- US
- Emission Code:
- 1
- Harmonized Tariff Code (HTS):
- 8708801600
- Harmonized Tariff Code (Schedule B):
- 8708800050
- Life Cycle Status Code:
- 2
- NAFTA Preference Criterion Code:
- B
- National Popularity Code:
- W
- Part Number - Old:
- 980-02-126
- Product Condition:
- NEW
- SDR Required Flag:
- N
- Taxable:
- Y
- Warranty Time:
- 12
- Warranty Time UOM:
- MO
