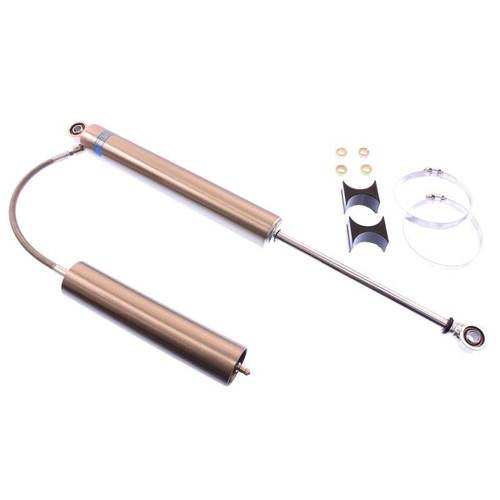

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.
- Body Design:
- Smooth Body (Non-Coilover)
- Compression @ 0.52 m/s:
- 780
- Extended Length [in]:
- 22.29
- Extended Length [in] Rounded:
- 22
- Extended Length [mm]:
- 566.2
- Finish:
- Nickel Plated with Clear Powder Coat
- Internal Design:
- Monotube
- Lower Mount Type:
- 1/2in Heim
- LTL:
- N
- Mount Type:
- Eye-to-Eye
- Optional Reservoir Clamp:
- N/A
- Rebound @ 0.52 m/s:
- 2750
- Reservoir:
- Yes
- Series:
- M 7100
- Spring Seat Included:
- No
- Supplier Order ID:
- 283967
- Supplier Part Number:
- bilAK7108R05
- Title:
- Bilstein Shock Absorbers
- Upper Mount Type:
- 1/2in Heim
- Body Inner Diameter:
- 46mm
- Collapsed Length (in):
- 14.06
- Collapsed Length (mm):
- 357.1
