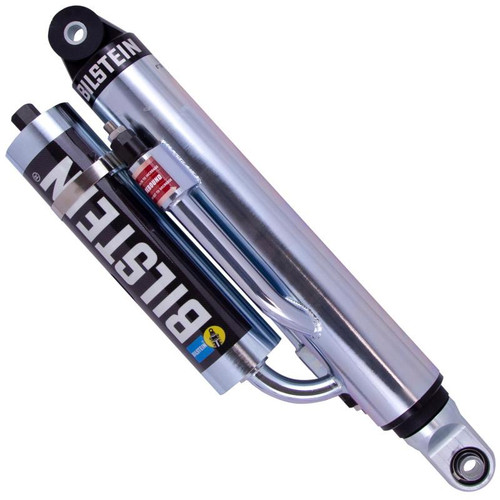

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.
- Body Design:
- 3-Tube Bypass Screw Top
- Boot Included:
- N/A
- Finish:
- Zinc Plated
- Internal Design:
- Monotube
- Lower Mount Type:
- Eye .5x1.5in
- Mount Type:
- Eye-to-Eye
- Optional Reservoir Clamp:
- N/A
- Position:
- Left
- Reservoir:
- Yes
- Series:
- M 9200 (Bypass)
- Spring Seat Included:
- No
- Title:
- Bilstein Shock Absorbers
- Upper Mount Type:
- Eye .5x1.5in
- Compression @ 0.52 m/s:
- Custom
- Extended Length [in]:
- 25.50
- Extended Length [in] Rounded:
- 26
- Extended Length [mm]:
- 647.7
- Rebound @ 0.52 m/s:
- Custom
- LTL:
- N
- Supplier Order ID:
- 198558
- Supplier Part Number:
- bil33-269528
- Body Inner Diameter:
- 60mm
- Collapsed Length (in):
- 18
- Collapsed Length (mm):
- 444.5
