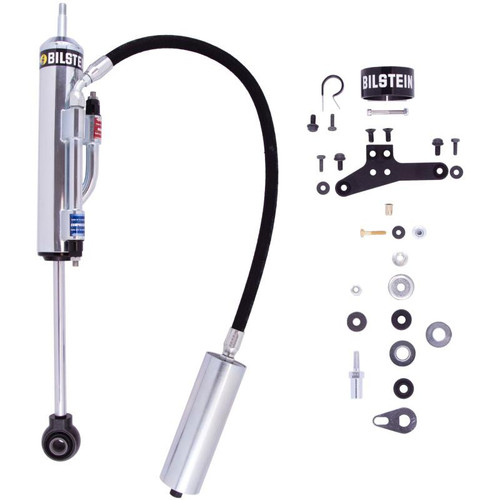

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV's. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
Year
Make
Model
Submodel
2010 - 2023
Lexus
GX460
Base
2023
Lexus
GX460
Black Line Edition
2014 - 2023
Lexus
GX460
Luxury
2010 - 2023
Lexus
GX460
Premium
2003 - 2009
Lexus
GX470
Base
2023
Toyota
4Runner
40th Anniversary Edition
2003 - 2009
Toyota
4Runner
Limited
2003 - 2023
Toyota
4Runner
SR5
2018 - 2023
Toyota
4Runner
SR5 Premium
2010 - 2016, 2021 - 2022
Toyota
4Runner
Trail
2017 - 2023
Toyota
4Runner
TRD Off-Road
2018 - 2023
Toyota
4Runner
TRD Off-Road Premium
2015 - 2023
Toyota
4Runner
TRD Pro
2020 - 2022
Toyota
4Runner
Venture
- Adjustable Damping:
- Double Adjustable – Compression and Rebound
- Body Design:
- Bypass Body (Non-Coilover)
- Boot Included:
- No
- Finish:
- Zinc Plated
- Internal Design:
- Monotube
- Lower Mount Type:
- Eye 19.3mm
- Reservoir:
- Yes
- Series:
- B8 8100 (Bypass)
- Spring Seat Included:
- No
- Title:
- Bilstein Shock Absorbers
- Upper Mount Type:
- Stem
- Extended Length [in]:
- 24.09
- Extended Length [mm]:
- 612.0
- LTL:
- N
- Supplier Order ID:
- 360495
- Supplier Part Number:
- bil25-284584
- Body Inner Diameter:
- 60mm
- Collapsed Length (in):
- 14.72
- Collapsed Length (mm):
- 374.0
