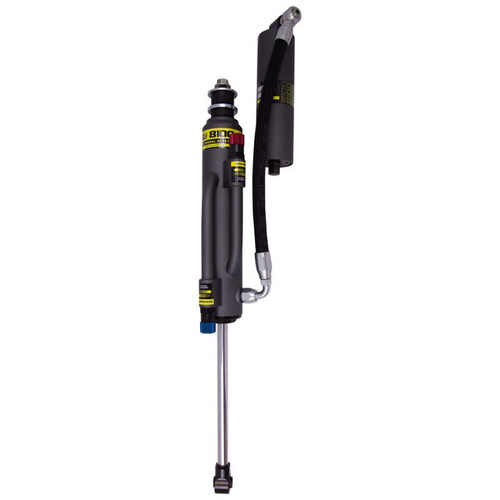

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV's. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
- Adjustable Damping:
- Double Adjustable Compression and Rebound with Click Adjuster Knobs
- Body Design:
- Bypass Body (Non-Coilover)
- Boot Included:
- No
- Extended Length [in]:
- 23.94
- Extended Length [mm]:
- 608.0
- Finish:
- EVO Grey
- Internal Design:
- Monotube
- Lower Mount Type:
- Eye 12mm
- LTL:
- N
- Reservoir:
- Yes
- Series:
- B8 8100 (Bypass)
- Spring Seat Included:
- No
- Supplier Order ID:
- 523243
- Supplier Part Number:
- bil25-320442
- Title:
- Bilstein Shock Absorbers
- Upper Mount Type:
- Stem
- Body Inner Diameter:
- 60mm
- Collapsed Length (in):
- 14.25
- Collapsed Length (mm):
- 362.0
