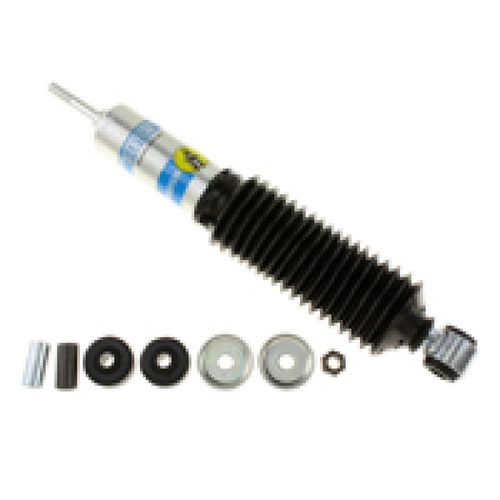

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
- Adjustable Damping:
- Non-Adjustable
- Body Design:
- Smooth Body (Non-Coilover)
- Boot Included:
- Black Bellows
- Finish:
- Zinc Plated
- Internal Design:
- Monotube
- Lower Mount Type:
- Eye 5/8in
- Mount Type:
- Stem-to-Eye
- Reservoir:
- No
- Series:
- B8 5125
- Spring Seat Included:
- No
- Title:
- Bilstein Shock Absorbers
- Upper Mount Type:
- Stem
- Compression @ 0.52 m/s:
- 840
- Extended Length [in]:
- 13.88
- Extended Length [in] Rounded:
- 14
- Extended Length [mm]:
- 352.6
- Rebound @ 0.52 m/s:
- 3695
- LTL:
- N
- Supplier Order ID:
- 354719
- Supplier Part Number:
- bil33-230306
- Body Inner Diameter:
- 46mm
- Collapsed Length (in):
- 9.41
- Collapsed Length (mm):
- 239.1
- California Prop 65 Notice:
- WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
