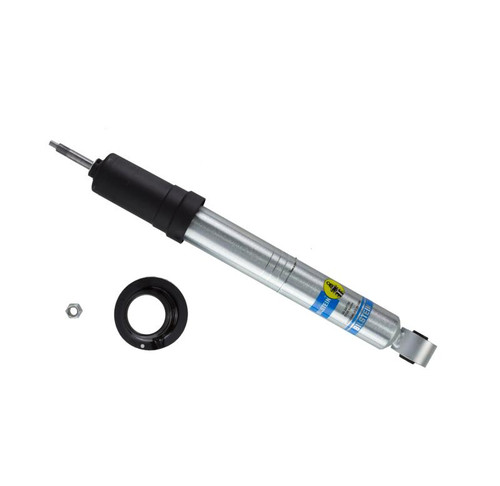

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Year
Make
Model
Submodel
1996 - 2001
Toyota
4Runner
Base
1996 - 2002
Toyota
4Runner
Limited
1996 - 2002
Toyota
4Runner
SR5
- Adjustable Damping:
- Non-Adjustable
- Body Design:
- Snap Ring Grooved Body (Coilover)
- Boot Included:
- Black Straight
- Extended Length [in]:
- 18.27
- Extended Length [mm]:
- 464.0
- Finish:
- Zinc Plated
- Internal Design:
- Monotube
- Lower Mount Type:
- Eye 14.2mm
- LTL:
- N
- Reservoir:
- No
- Series:
- B8 5100 (Ride Height Adjustable)
- Spring Seat Included:
- Yes
- Supplier Order ID:
- 4386061
- Supplier Part Number:
- bil24-248730
- Title:
- Bilstein Shock Absorbers
- Upper Mount Type:
- Stem
- Body Inner Diameter:
- 46mm
- Collapsed Length (in):
- 13.66
- Collapsed Length (mm):
- 347.0
- California Prop 65 Notice:
- WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
