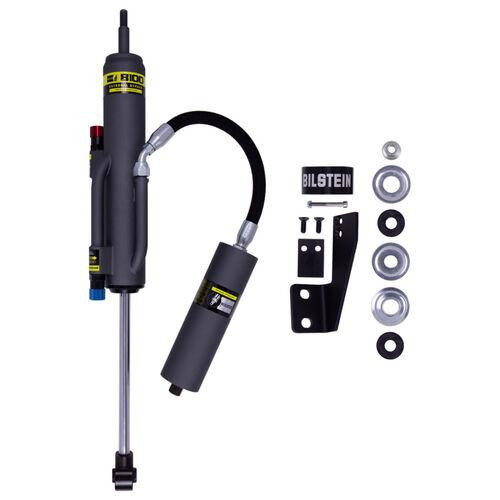

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
Year
Make
Model
Submodel
2014 - 2021
Toyota
Tundra
1794 Edition
2007 - 2013
Toyota
Tundra
Base
2007 - 2021
Toyota
Tundra
Limited
2021
Toyota
Tundra
Nightshade
2013 - 2021
Toyota
Tundra
Platinum
2014 - 2021
Toyota
Tundra
SR
2007 - 2011, 2014 - 2021
Toyota
Tundra
SR5
2021
Toyota
Tundra
Trail
2015 - 2017, 2019 - 2021
Toyota
Tundra
TRD Pro
- Adjustable Damping:
- Double Adjustable Compression and Rebound with Click Adjuster Knobs
- Body Design:
- Bypass Body (Non-Coilover)
- Boot Included:
- No
- Extended Length [in]:
- 25.88
- Extended Length [mm]:
- 657.4
- Finish:
- EVO Grey
- Internal Design:
- Monotube
- Lower Mount Type:
- Eye 12.4mm
- LTL:
- N
- Reservoir:
- Yes
- Series:
- B8 8100 (Bypass)
- Spring Seat Included:
- No
- Supplier Order ID:
- 587885
- Supplier Part Number:
- bil25-326048
- Title:
- Bilstein Shock Absorbers
- Upper Mount Type:
- Stem
- Body Inner Diameter:
- 60mm
- Collapsed Length (in):
- 15.75
- Collapsed Length (mm):
- 400.0
