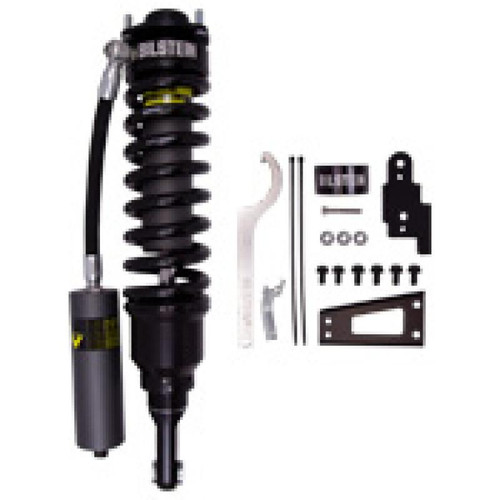

Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV's. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
- Adjustable Damping:
- Non-Adjustable
- Body Design:
- Smooth Body (Coilover)
- Body Material:
- Steel
- Boot Included:
- No
- Extended Length [in]:
- 22.39
- Extended Length [mm]:
- 568.8
- Finish:
- Dampers: EVO Grey/Springs: Black
- Internal Design:
- Monotube
- Lower Mount Type:
- Eye 14.1mm
- LTL:
- N
- Optional Heavy Load Springs:
- 53-291387, 53-332837
- Reservoir:
- Yes
- Series:
- B8 8112 (ZoneControl CR)
- Spring Seat Included:
- Yes
- Supplier Order ID:
- 519733
- Supplier Part Number:
- bil41-322673
- Title:
- Bilstein Shock Absorbers
- Upper Mount Type:
- Special
- Body Inner Diameter:
- 60mm
- Collapsed Length (in):
- 17.43
- Collapsed Length (mm):
- 442.6
- California Prop 65 Notice:
- WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
