Description

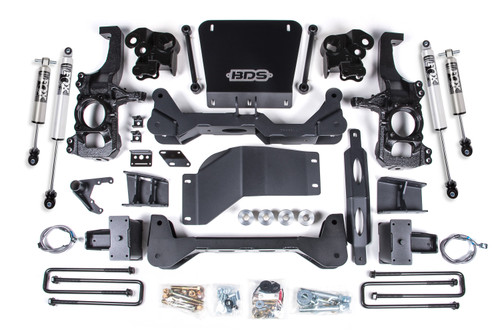

The 5 Inch Lift Kit | FOX 2.5 HTO Performance Series | Chevy Silverado or GMC Sierra 2500HD/3500HD (20-26) 4WD | w/o Factory Overload is a complete suspension upgrade that raises your Chevy Silverado or GMC Sierra 2500HD/3500HD (2020-2026) 4WD and makes room for larger rubber. It raises the front 5 in. and the rear 4.5 in. Once installed, it makes room for tires up to 35 x 12.5 in.
Rear lift is handled by the without factory overload option.
Features
- Lift height: 5 in. front (cross-member), 4.5 in. rear (block)
- Heavy 1/4 in. laser-cut steel crossmembers that keep the underside clear
- Front skid plate adds underbody protection and stiffens the front subframe
- CNC-machined ductile iron knuckles restore proper steering geometry at the taller height
- Front differential relocation brackets to protect CV joint angles
- Clearance for tires up to 35 x 12.5 in.
Specifications
- Country of Origin (Primary)
- US
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Front Lift Height
- 5 in.
- Front Lift Method
- Cross-Member
- Max Tire Size
- 35 x 12.5 in.
- Rear Lift Height
- 4.5 in.
- Rear Lift Method
- Block
- Rear Lift Option
- Without Factory Overload
