Description

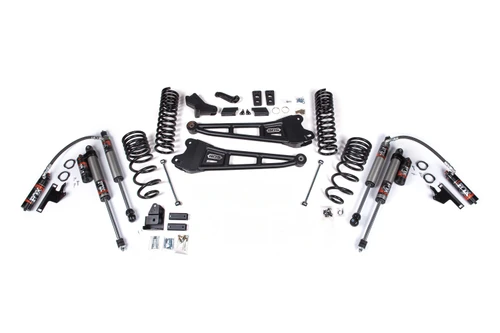

Built for drivers who want more clearance and a stronger stance, the 4 Inch Lift Kit w/ Radius Arm | Ram 2500 (25-27) 4WD | Diesel | FOX 2.5 Performance Elite transforms your Ram 2500 (2025-2027) 4WD. It raises the front 4 in. and the rear 2.5 in. Once installed, it makes room for tires up to 35 x 12.5 in.
This version is matched with FOX 2.5 Performance Elite shocks for damping tuned to the new height.
Features
- Lift height: 4 in. front (coil spring), 2.5 in. rear (coil spring)
- BDS progressive-rate coil springs deliver the lift with a smooth, predictable ride
- Radius arms re-establish caster and axle position at the new height
- Pitman arm correction keeps steering geometry in line
- Transfer case indexing ring or drop to maintain driveline angles
- Includes FOX 2.5 Performance Elite shocks
- Clearance for tires up to 35 x 12.5 in.
Specifications
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Engine Type
- Diesel
- Front Lift Height
- 4 in.
- Front Lift Method
- Coil Spring
- Max Tire Size
- 35 x 12.5 in.
- Rear Lift Height
- 2.5 in.
- Rear Lift Method
- Coil Spring
- Shock Option
- FOX 2.5 Performance Elite
- Shocks Included
- Yes
