Description

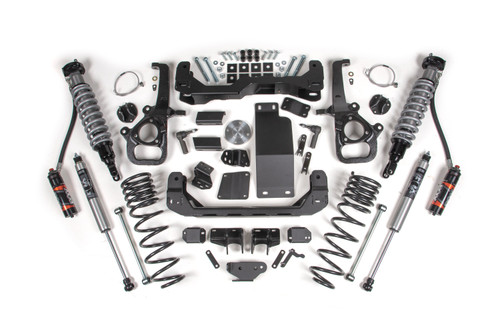

Built for drivers who want more clearance and a stronger stance, the 4 Inch Lift Kit | FOX Coilover | Ram 1500 (25-27) 4WD | Large Bore / FOX 2.5 Performance Elite Coil-Over / FOX 2.0 Performance Series Shock transforms your Ram 1500 (2025-2027) 4WD. It raises the front 4 in. and the rear 3 in. Once installed, it makes room for tires up to 35 x 12.5 in.
This configuration pairs FOX 2.5 Performance Elite Coil-Over front coil-overs with FOX 2.0 Performance Series Shock rear shocks. It is configured for vehicles with Large Bore OE knuckles.
Features
- Lift height: 4 in. front (coil-over), 3 in. rear (coil spring)
- Tall-arch 1/4 in. steel crossmembers built for clearance and strength
- Bolt-together skid plate system shields key components off-road
- CNC-machined ductile iron knuckles restore proper steering geometry at the taller height
- Front differential relocation brackets to protect CV joint angles
- Includes FOX 2.5 Performance Elite Coil-Over
- Clearance for tires up to 35 x 12.5 in.
Specifications
- Life Cycle Status Code
- 2
- Coil Over Option
- FOX 2.5 Performance Elite Coil-Over
- Drivetrain
- 4WD
- Front Lift Height
- 4 in.
- Front Lift Method
- Coil-Over
- Max Tire Size
- 35 x 12.5 in.
- OE Knuckle Type
- Large Bore
- Rear Lift Height
- 3 in.
- Rear Lift Method
- Coil Spring
- Rear Shock Option
- FOX 2.0 Performance Series Shock
- Shocks Included
- Yes
