Description

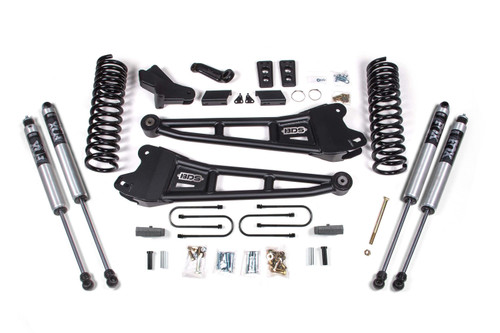

Built for drivers who want more clearance and a stronger stance, the 4 Inch Lift Kit w/ Radius Arm | Ram 3500 (13-18) 4WD | Diesel | FOX 2.0 Performance Series transforms your Ram 3500 (2013-2018) 4WD. It raises the front 4 in. and the rear 3 in. Once installed, it makes room for tires up to 37 x 12.5 in.
This version is matched with FOX 2.0 Performance Series shocks for damping tuned to the new height.
Features
- Lift height: 4 in. front (coil spring), 3 in. rear (block)
- BDS progressive-rate coil springs deliver the lift with a smooth, predictable ride
- Fabricated steel lift blocks raise and level the rear
- New U-bolts sized for the lifted rear
- Radius arms re-establish caster and axle position at the new height
- Track bar components keep the axle centered under the vehicle
- Includes FOX 2.0 Performance Series shocks
- Clearance for tires up to 37 x 12.5 in.
Specifications
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Engine Type
- Diesel
- Front Lift Height
- 4 in.
- Front Lift Method
- Coil Spring
- Max Tire Size
- 37 x 12.5 in.
- Rear Lift Height
- 3 in.
- Rear Lift Method
- Block
- Shock Option
- FOX 2.0 Performance Series
- Shocks Included
- Yes
