Full adjustment. Total Performance. The XL Linkable was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs.

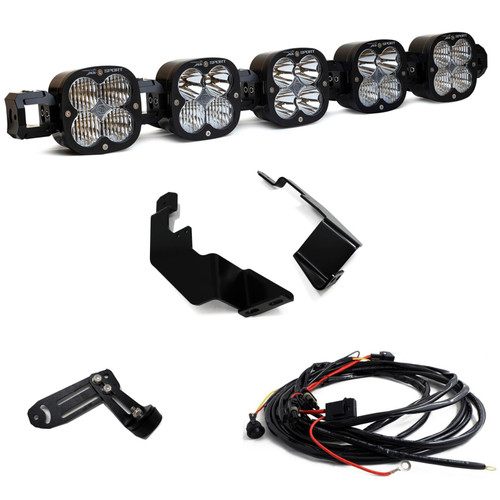

This kit includes 5 XL Sports, Links, vehicle specific mounting brackets, wiring harness and rock guards. A pre-load support bracket is included to ensure stiffness in the most extreme terrain.
This kit is a turn key LED system for the Toyota Tacoma owner that is looking to drastically improve the looks and performance of their truck.
Baja Designs Features:
- Satisfactions Guarantee - 30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService- Replaceable Lenses And Optics
- ClearView- All The Light, Right Where You Need It.
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive- Only LED Driven At 100 percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
Specifications:
- Lumens: 15,750 Utilizing 24 LEDs
- Wattage/Amps: 130W / 10A
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)
Includes:
- x1 XL Sport Spot LED Light
- x2 XL Sport Driving/Combo LED Light
- x2 XL Sport Wide Cornering LED Light
- x5 XL Sport Rock Guards
- Pre-load base Bracket
- Wiring Harness
- Vehicle Specific Mounts
Application:
2016 - 2020 Toyota Tacoma
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44 degree) and spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
High Speed Spot: A longer and narrower 6 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
- series:
- XL Series
- universal:
- No
- Brackets:
- Yes
- Brand Logo:
- https://www.asapnetwork.org/sites/default/files/brands/icons/baja%20asap.jpg
- Last Update:
- 2025-09-01 05:07:00
- Sold As:
- Kit
- Vehicle Type:
- Truck/SUV
- Waterproof Rating:
- IP69K (Waterproof up to 9ft Pressure Washable)
- LTL:
- N
- Supplier Order ID:
- 431563
- Supplier Part Number:
- baj447670
- California Prop 65 Notice:
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Add-On:
- Kit Contents-740003-XL Linkable Sport (Spot x 1, Driving/Combo x 2, Wide Corning x 2; Clear)
- Title:
- Baja Designs - 447670 - XL Linkable Bumper Light Kit
