Carefully designed to be the ultimate roof mounted light bar kit for the JL and Gladiator JT platforms. The 50 inch OnX6+ combines far reaching, high speed spot reflectors with the Baja Designs Driving Combo lens for a smooth yet intense pattern that will light up the whole trail.
This kit includes a 50 inch OnX6+ LED Light Bar, vehicle specific mounting brackets, hardware, and wiring to make installation a breeze. No cutting, trimming, or drilling is required and all wiring is pre-sized for your vehicle.
This kit includes an Upfitter Wiring harness for models with factory Upfitter switch provisions.
This bar is equipped with BMT Battery Management Technology
- Elimination Of Flickering at Low Voltage
- Added Protection to Vehicle Wiring and Systems
- Protection from Dangerous Current Spikes
The OnX6+ LED Light Bar is BRIGHTER. BOLDER. BETTER.
Baja Designs Features:
- Satisfactions Guarantee 30 Day Money Back Guarantee
- Limited Lifetime Warranty Complete Purchase Protection
- uService Replaceable Lenses And Optics
- ClearView All The Light, Right Where You Need It.
- MoistureBlock Waterproof, Rain Proof, Submersible
- CopperDrive Only LED Driven At 100 percent
- 5000K Daylight Less Driver Fatigue, Natural Color
Specifications:
- Lumens: 39,430 Utilizing 30 Cree LEDs
- Wattage/Amps: 355W / 28.2A
- Dimensions: 50 x 4.29 x 2.69 inch
- Weight: 18.65 lbs
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft and Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)

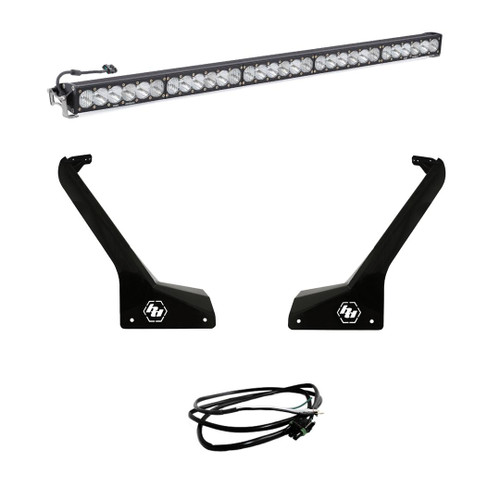

Includes:
- OnX6+ 50 LED Light Bar
- Vehicle Specific Mounting Brackets
- Upfitter Harness
Application:
- Jeep JL
- Jeep JT
- series:
- Jeep OE
- universal:
- No
- Bracket Material:
- Stainless Steel
- Brackets:
- Yes
- Brand Logo:
- https://www.asapnetwork.org/sites/default/files/brands/icons/baja%20asap.jpg
- Last Update:
- 2025-09-01 05:06:28
- Life Expectancy:
- 49,930 Hours
- Sold As:
- Kit
- Vehicle Type:
- Jeep
- Waterproof Rating:
- IP69K (Waterproof up to 9ft Pressure Washable)
- LTL:
- N
- Supplier Order ID:
- 403726
- Supplier Part Number:
- baj447666UP
- California Prop 65 Notice:
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Add-On:
- Kit Contents-455003-OnX6+ 50 Inch (Driving/Combo; Clear)
- Title:
- Baja Designs - 447666UP - OnX6+ 50 Inch Roof Mount Light Kit
