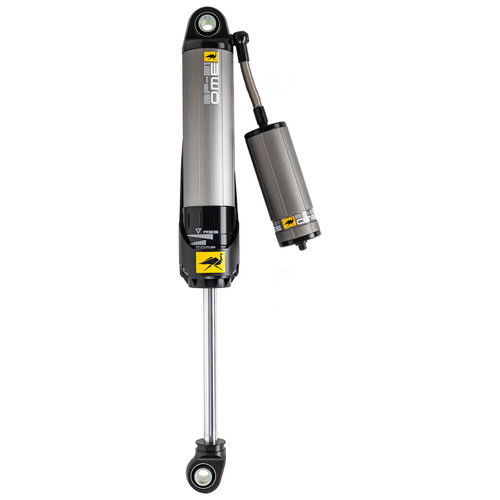

ARB Old Man Emu BP-51 Shock Absorber Rear Left BP5160074L
ARB Old Man Emu BP-51 Shock Absorber Rear Left BP5160074L
ARB Old Man Emu BP-51 Shock Absorber Rear Left BP5160074L

Description

This Old Man Emu BP-51 Shock Absorber for the INEOS Grenadier and Grenadier Quartermaster combines racing-inspired suspension technology with a vehicle-specific design built for both everyday driving and demanding off-road use. Its 51mm bore and internal bypass system provide position- and velocity-sensitive damping, delivering controlled performance throughout the suspension's travel while adding significant damping near the end zones. Independent compression and rebound adjustment allows the shock to be tuned to suit different terrain and vehicle setups, while the remote reservoir and 6061 aluminum construction help manage heat during prolonged use.

Features

  • Engineered for the INEOS Grenadier and Grenadier Quartermaster
  • Position- and velocity-sensitive damping
  • Internal bypass technology provides increased control at suspension end zones
  • 51mm (2 in) internal bore
  • 10 levels of compression adjustment
  • 10 levels of rebound adjustment
  • Remote reservoir increases oil capacity for improved heat management
  • 6061 aluminum body for strength and heat dissipation
  • Type III hard anodized construction improves corrosion resistance
  • Bolt-on vehicle-specific design requiring no vehicle modifications
  • Designed for improved on-road comfort and off-road control
Product Documentation

Specifications

Add-On
N/A
Body Size
2.8 in
California Prop 65 Notice
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Closed Length
15.4 in
Color
Grey
Core Return Days to Expiry
0
Country of Origin (Primary)
TH
Design
Bypass
Emission Code
1
Finish
Type III Hard Anodized
Harmonized Tariff Code (HTS)
8708801300
Life Cycle Status Code
2
Lift Height
0-2 in
Material
6061 Aluminium
National Popularity Code
A
Position
Rear
Product Condition
New
SDR Required Flag
N
Style
BP-51
Title
Old Man Emu - BP5160074L - BP-51 Shock Absorber Rear Left
Warranty Time
3
Warranty Time UOM
YR
