sPod

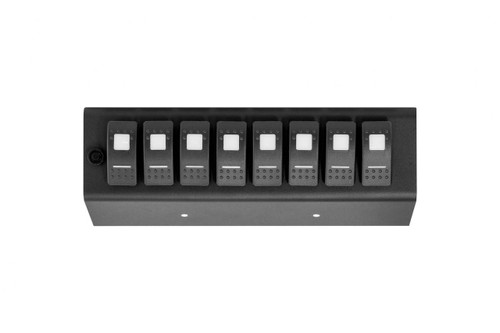

Add On Blue LED 8-Switch Panel for 07-08 Jeep Wrangler JK (for SourceSE)

Special Order Why?
$350.00
Adding to cart… The item has been added
Shipping:
Free Shipping!
SKU:
SPO860850
UPC:
816482021101

JK Add On Switch Panel For 8 Circuit SE System 07-08 Wrangler JK Blue. The system utilizes automotive grade approved high-power, high-temp, ultra-reliable components with a maximum 100 amp capacity!

The sPOD SourceSE is a fully programmable digital CAN-Bus controlled system utilizing state-of-the-art technologies. OEM vehicle specific simple installation hardware, engineered and 100 percent manufactured in the United States.

This is an Add On Only be added to SE Touchscreen system 8-700-TS-JK to allow Touchscreen and hard switch panel option. Not designed to be used without SE 8 Circuit Source. Fits 2007-2008 Jeep JK.
Switch Panel Features:

  • Dual lit (LED indicator lights, on position and pilot light) in Blue (All switches will be one color)
  • The new switch panel has 8 switches. This panel uses an Ethernet cable that interfaces with the Source with a RJ-45 plug on both ends. Standard cable length will be 10 feet.
  • Each switch is programmable for Strobe or Flash (by a sequence of On/Off/On quickly )
  • Automatic system shut down when panel is unplugged
  • Lower pilot light has an independent power control push button for full operator control
  • Switches are Carling Technologies Contura series with an IP67 rating (marine/heavy equipment)
  • Switch Panel housing is Not plastic but rather, an aluminum formed and welded design to match the interior of the Jeep JK (2009-2015) with specific mounting hardware
  • Switch panel can be daisy chained for remote operations (EG: one panel in cab and one panel in far back of truck) can easily add up to 10 switch panels.
  • Options to mix and match with the Touchscreen panels as well.
  • Two ports available integrated into the CAN-Bus controller.



capacity:
100 AMP
universal:
No
warranty:
1 Year Limited
Battery Cable Length:
84 Inch
Bluetooth Included:
No
Brand Logo:
https://www.asapnetwork.org/sites/default/files/brands/icons/spod%20small%20logo.jpg
Circuit Breaker Included:
50 AMP
Color:
Black
Finish:
Powdercoat
Last Update:
2024-03-05 16:12:54
Material:
Aluminum Formed
Mount Location:
Between visors on windshied frame
Product Notes:
Must have 8 Circuit SE Source for JK
Single Circuit Capacity:
30 AMP
Sold As:
Kit
Switch Color:
Blue
Switch Illumination:
Dual LED
Vehicle Type:
Jeep
LTL:
N
Supplier Part Number:
spo860850
Supplier Order ID:
706112
