sPod

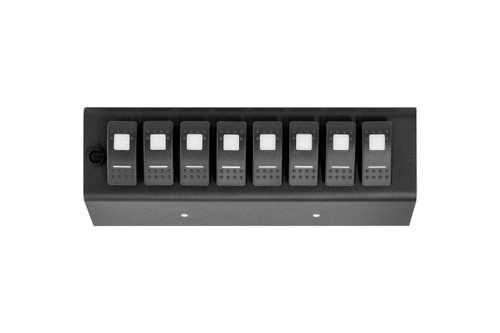

Add On Amber LED 8-Switch Panel for 09-18 Jeep Wrangler JK (for SourceSE)

Special Order Why?
$350.00
Adding to cart… The item has been added
Shipping:
Free Shipping!
SKU:
SPO860865
UPC:
816482021057

JK Add On Switch Panel For 8 Circuit SE System for 2009-2018 Wrangler JK with Amber switches. This is an Add On Only to be added to SE Touchscreen system (8-700-TSB-JK) to allow touchscreen and hard switch panel option. Not designed to be used without SourceSE (8 Circuit Source).

The system utilizes automotive grade approved high-power, high-temp, ultra-reliable components with a maximum 100 amp capacity! The sPOD SourceSE is a fully programmable digital CAN-Bus controlled system utilizing state-of-the-art technologies. OEM vehicle specific simple installation hardware, engineered and 100 percent manufactured in the United States.

Switch Panel Features:

  • Dual lit (LED indicator lights, On position and pilot light) in Amber (All switches will be one color)
  • The new switch panel has 8 switches. This panel uses an Ethernet cable that interfaces with the Source with an RJ-45 plug on both ends. Standard cable length will be 10 feet.
  • Each switch is programmable for Strobe or Flash (by a sequence of On/Off/On quickly )
  • Automatic system shut down when the panel is unplugged
  • Lower pilot light has an independent power control push button for full operator control
  • Switches are Carling Technologies Contura series with an IP67 rating (marine/heavy equipment)
  • Switch Panel housing is Not plastic but rather, an aluminum formed and welded design to match the interior of the Jeep JK (2009-2015) with specific mounting hardware
  • Switch panel can be daisy-chained for remote operations (EG: one panel in cab and one panel in far back of truck) can easily add up to 10 switch panels. Options to mix and match with the Touchscreen panels as well.
  • Two ports available integrated into the CAN-Bus controller.



capacity:
100 AMP
universal:
No
warranty:
1 Year Limited
Battery Cable Length:
84 Inch
Bluetooth Included:
No
Brand Logo:
https://www.asapnetwork.org/sites/default/files/brands/icons/spod%20small%20logo.jpg
Circuit Breaker Included:
50 AMP
Color:
Black
Finish:
Powdercoat
Last Update:
2024-03-05 16:12:45
Material:
Aluminum Formed
Mount Location:
Between visors on windshied frame
Product Notes:
Must have 8 Circuit SE Source for JK
Single Circuit Capacity:
30 AMP
Sold As:
Kit
Switch Color:
Amber
Switch Illumination:
Dual LED
Vehicle Type:
Jeep
LTL:
N
Supplier Part Number:
spo860865
Supplier Order ID:
706109
