Description

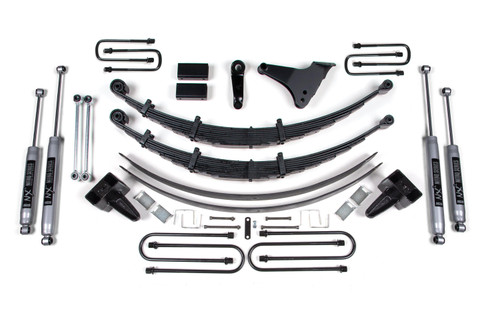

The 6 Inch Lift Kit | Ford F250/F350 Super Duty (99-04) 4WD | Radius / Block Kit w/ Factory Overload / NX2 Nitro Series is a complete suspension upgrade that raises your Ford F250/F350 Super Duty (1999-2004) 4WD and makes room for larger rubber. It raises the front 6 in. and the rear 5 in. Once installed, it makes room for tires up to 36 x 12.5 in.
This version is matched with NX2 Nitro Series shocks for damping tuned to the new height. Rear lift is handled by the block kit with factory overload option. Front U-bolt style: Radius.
Features
- Lift height: 6 in. front (leaf spring), 5 in. rear
- Glide-Ride multi-leaf springs use a triple-stage progressive design for a smooth ride loaded or empty
- Fabricated steel lift blocks raise and level the rear
- New U-bolts sized for the lifted rear
- Track bar components keep the axle centered under the vehicle
- Pitman arm correction keeps steering geometry in line
- Includes NX2 Nitro Series shocks
- Clearance for tires up to 36 x 12.5 in.
Specifications
- Country of Origin (Primary)
- US
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Front Lift Height
- 6 in.
- Front Lift Method
- Leaf Spring
- Front U-Bolt Type
- Radius
- Max Tire Size
- 36 x 12.5 in.
- Rear Lift Height
- 5 in.
- Rear Lift Option
- Block Kit With Factory Overload
- Shock Option
- NX2 Nitro Series
- Shocks Included
- Yes
- Brand Logo
- Resources & Documents
- California Prop 65 Notice
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Color
- Silver
- Drive
- 4WD
- Finish
- Powdercoat
- Kit Components
- Includes two BDS003602, Ford F250/350 6in Front Spring, UPC Code 658848611362Includes one BDS013006, 00-01 Ford F250/350 6&8in Front Box Kit, UPC Code 658848612963Includes one BDS013328, 1999-2007 Ford F250/F350 Rear Box Kit w/ Overload, UPC Code 65
- Last Update
- 2026-10-20 17:08:06
- Lift Height
- 6.0 Inch
- Sold As
- Kit
- Universal
- No
- Vehicle Type
- Truck/SUV
- Warranty
- Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
