Description

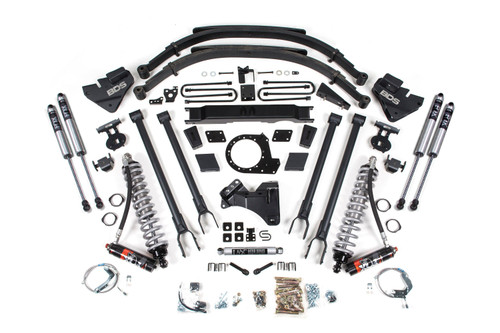

The 9 Inch Lift Kit w/ 4-Link | FOX 2.5 Performance Elite Coil-Over Conversion | Ford F250/F350 Super Duty (20-22) 4WD | Diesel is a complete suspension upgrade that raises your Ford F250/F350 Super Duty (2020-2022) 4WD and makes room for larger rubber. It raises the front 9 in. and the rear 8 in. Once installed, it makes room for tires up to 38 x 15.5 in.
Features
- Lift height: 9 in. front (coil-over), 8 in. rear (leaf spring)
- Replacement crossmember hardware engineered for the new ride height
- Leaf springs engineered for the added lift and load-carrying duty
- New U-bolts sized for the lifted rear
- 4-link setup improves articulation and axle control over the factory design
- Lower control arms help locate the axle at the new ride height
- Clearance for tires up to 38 x 15.5 in.
Specifications
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Engine Type
- Diesel
- Front Lift Height
- 9 in.
- Front Lift Method
- Coil-Over
- Max Tire Size
- 38 x 15.5 in.
- Rear Lift Height
- 8 in.
- Rear Lift Method
- Leaf Spring
