Description

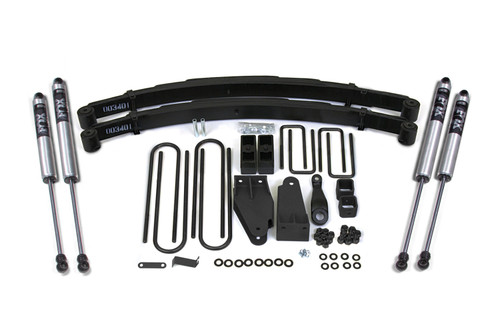

Give your Ford F250 TTB (1987-1996) 4WD more height, room for bigger tires, and better trail capability with the 4 Inch Lift Kit | Ford F250 TTB (87-96) 4WD | FOX 2.0 Performance Series. It raises the front 4 in. and the rear 3 in. Once installed, it makes room for tires up to 35 x 12.5 in.
This version is matched with FOX 2.0 Performance Series shocks for damping tuned to the new height.
Features
- Lift height: 4 in. front (leaf spring), 3 in. rear (block)
- Glide-Ride multi-leaf springs use a triple-stage progressive design for a smooth ride loaded or empty
- Fabricated steel lift blocks raise and level the rear
- New U-bolts sized for the lifted rear
- Pitman arm correction keeps steering geometry in line
- Bump stop extensions limit up-travel to protect components
- Includes FOX 2.0 Performance Series shocks
- Clearance for tires up to 35 x 12.5 in.
Specifications
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Front Lift Height
- 4 in.
- Front Lift Method
- Leaf Spring
- Max Tire Size
- 35 x 12.5 in.
- Rear Lift Height
- 3 in.
- Rear Lift Method
- Block
- Shock Option
- FOX 2.0 Performance Series
- Shocks Included
- Yes
