Description

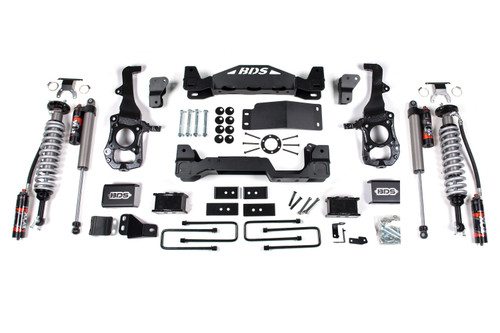

The 4 Inch Lift Kit | FOX 2.5 Performance Elite Coil-Over | Ford F150 (21-26) 4WD | 3 Inch Block Kit / FOX 2.5 Performance Elite is a complete suspension upgrade that raises your Ford F150 (2021-2026) 4WD and makes room for larger rubber. It provides 4 in. of front lift. Once installed, it makes room for tires up to 35 x 12.5 in.
This version includes FOX 2.5 Performance Elite rear shocks. Rear lift is handled by the 3 in. block kit option.
Features
- Lift height: 4 in. front (cross-member)
- Heavy 1/4 in. laser-cut steel crossmembers that keep the underside clear
- Bolt-together skid plate system shields key components off-road
- CNC-machined ductile iron knuckles restore proper steering geometry at the taller height
- Differential drop brackets help keep CV and driveline angles in check
- Includes FOX 2.5 Performance Elite shocks
- Clearance for tires up to 35 x 12.5 in.
Specifications
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Front Lift Height
- 4 in.
- Front Lift Method
- Cross-Member
- Max Tire Size
- 35 x 12.5 in.
- Rear Lift Method
- Block
- Rear Lift Option
- 3 in. Block Kit
- Rear Shock Option
- FOX 2.5 Performance Elite
- Shocks Included
- Yes
- Brand Logo
- Resources & Documents
- California Prop 65 Notice
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Color
- Black
- Drive
- 4WD
- Engine Years
- 2021-2025
- Finish
- Powdercoat
- Fuel Type
- Gas
- Kit Components
- BDS013437, BDS023652, BDS023653, BDS023670, BDS023671, FOX88406325, FOX88426025
- Last Update
- 2026-10-20 15:30:09
- Lift Height
- 4.0 Inch
- Sold As
- Kit
- Universal
- No
- Vehicle Type
- Truck/SUV
- Warranty
- Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
