Description

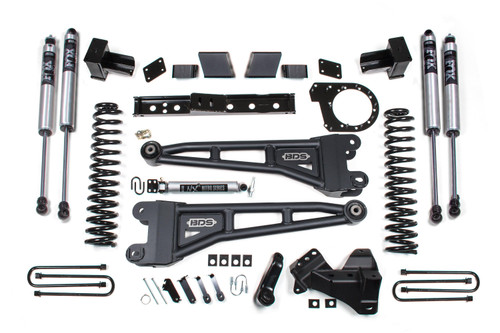

Give your Ford F350 Super Duty DRW (2020-2022) 4WD more height, room for bigger tires, and better trail capability with the 7 Inch Lift Kit w/ Radius Arm | Ford F350 Super Duty DRW (20-22) 4WD | Diesel | FOX 2.0 Performance Series. It raises the front 6 in. and the rear 5 in. Once installed, it makes room for tires up to 38 x 13.5 in.

This version is matched with FOX 2.0 Performance Series shocks for damping tuned to the new height.

Features

  • Lift height: 6 in. front (coil spring), 5 in. rear (block)
  • Replacement crossmember hardware engineered for the new ride height
  • BDS progressive-rate coil springs deliver the lift with a smooth, predictable ride
  • Fabricated steel lift blocks raise and level the rear
  • New U-bolts sized for the lifted rear
  • Radius arms re-establish caster and axle position at the new height
  • Includes FOX 2.0 Performance Series shocks
  • Clearance for tires up to 38 x 13.5 in.

Specifications

Life Cycle Status Code
2
Drivetrain
4WD
Engine Type
Diesel
Front Lift Height
6 in.
Front Lift Method
Coil Spring
Max Tire Size
38 x 13.5 in.
Rear Lift Height
5 in.
Rear Lift Method
Block
Shock Option
FOX 2.0 Performance Series
Shocks Included
Yes
California Prop 65 Notice
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Color
Clear
Finish
Anodized
Fuel Type
Diesel
Kit Components
Includes one BDS013526, 2017-2020 F350 Dually 5 inch Block Kit, UPC Code 658848613632Includes one BDS013603, 2020-2022 F250/F350 6 inch RA Front Box Suspension System, UPC Code 658848613724Includes one BDS033611, 2005-2022 Ford F250/F350 6 inch (Die
Last Update
2026-10-20 16:56:33
Lift Height
7.0 Inch
Sold As
Kit
Universal
No
Vehicle Type
Truck/SUV
Warranty
Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
7 Inch Lift Kit w/ Radius Arm | Ford F350 Super Duty DRW (20-22) 4WD | Diesel | FOX 2.0 Performance Series

7 Inch Lift Kit w/ Radius Arm | Ford F350 Super Duty DRW (20-22) 4WD | Diesel | FOX 2.0 Performance Series
