Description

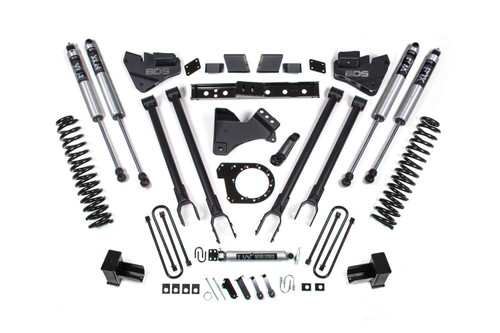

The 6 Inch Lift Kit w/ 4-Link | Ford F350 Super Duty DRW (20-22) 4WD | Diesel | FOX 2.0 Performance Series is a complete suspension upgrade that raises your Ford F350 Super Duty DRW (2020-2022) 4WD and makes room for larger rubber. It raises the front 6 in. and the rear 5 in. Once installed, it makes room for tires up to 38 x 13.5 in.
This version is matched with FOX 2.0 Performance Series shocks for damping tuned to the new height.
Features
- Lift height: 6 in. front (coil spring), 5 in. rear (block)
- Replacement crossmember hardware engineered for the new ride height
- BDS progressive-rate coil springs deliver the lift with a smooth, predictable ride
- Heavy-duty rear lift blocks for added height without sacrificing load capacity
- New U-bolts sized for the lifted rear
- 4-link setup improves articulation and axle control over the factory design
- Includes FOX 2.0 Performance Series shocks
- Clearance for tires up to 38 x 13.5 in.
Specifications
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Engine Type
- Diesel
- Front Lift Height
- 6 in.
- Front Lift Method
- Coil Spring
- Max Tire Size
- 38 x 13.5 in.
- Rear Lift Height
- 5 in.
- Rear Lift Method
- Block
- Shock Option
- FOX 2.0 Performance Series
- Shocks Included
- Yes
- Brand Logo
- Resources & Documents
- California Prop 65 Notice
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Color
- Clear
- Drive
- 4WD
- Finish
- Anodized
- Fuel Type
- Diesel
- Kit Components
- Includes one BDS013526, 2017-2020 F350 Dually 5 inch Block Kit, UPC Code 658848613632Includes one BDS013601, 2017-2022 Super Duty 4-Link Box Kit 1of2, UPC Code 658848613700Includes one BDS013604, 2017-2022 Ford F-250 / F-350 6 inch 4-Link Box Kit 2o
- Last Update
- 2026-10-20 16:56:33
- Lift Height
- 6.0 Inch
- Sold As
- Kit
- Universal
- No
- Vehicle Type
- Truck/SUV
- Warranty
- Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
