Description

Give your Chevy Silverado or GMC Sierra 2500HD/3500HD (2020-2026) 4WD more height, room for bigger tires, and better trail capability with the 5 Inch Lift Kit | FOX Performance Elite | Chevy Silverado or GMC Sierra 2500HD/3500HD (20-26) 4WD | 5 Inch Block Kit w/o Overload. It raises the front 5 in. and the rear 4.5 in. Once installed, it makes room for tires up to 37 x 12.5 in.

Rear lift is handled by the 5 in. block kit without overload option.

Features

  • Lift height: 5 in. front (cross-member), 4.5 in. rear (block)
  • Heavy 1/4 in. laser-cut steel crossmembers that keep the underside clear
  • Bolt-together skid plate system shields key components off-road
  • CNC-machined ductile iron knuckles restore proper steering geometry at the taller height
  • Differential drop brackets help keep CV and driveline angles in check
  • Clearance for tires up to 37 x 12.5 in.

Specifications

Life Cycle Status Code
2
Drivetrain
4WD
Front Lift Height
5 in.
Front Lift Method
Cross-Member
Max Tire Size
37 x 12.5 in.
Rear Lift Height
4.5 in.
Rear Lift Method
Block
Rear Lift Option
5 in. Block Kit Without Overload
California Prop 65 Notice
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

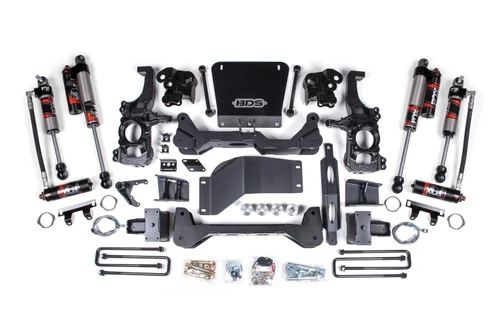

Kit Components
Includes one BDS011416, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch Rear Box Kit - w/o Overloads, UPC Code 658848611829Includes one BDS021505, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch Box Kit, UPC Code 6588486147
Last Update
2026-10-20 16:27:48
Sold As
Kit
Universal
No
Warranty
Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
Drive
4WD
Lift Height
5.0 Inch
Vehicle Type
Truck/SUV
5 Inch Lift Kit | FOX Performance Elite | Chevy Silverado or GMC Sierra 2500HD/3500HD (20-26) 4WD | 5 Inch Block Kit w/o Overload

5 Inch Lift Kit | FOX Performance Elite | Chevy Silverado or GMC Sierra 2500HD/3500HD (20-26) 4WD | 5 Inch Block Kit w/o Overload
