Description

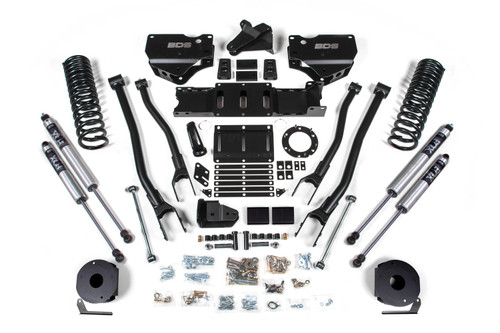

The 4 Inch Lift Kit w/ 4-Link | Ram 2500 w/ Rear Air Ride (19-24) 4WD | Gas | FOX 2.0 Performance Series is a complete suspension upgrade that raises your Ram 2500 w/ Rear Air Ride (2019-2024) 4WD and makes room for larger rubber. It raises the front 4 in. and the rear 3-5 in. Once installed, it makes room for tires up to 35 x 12.5 in.
This version is matched with FOX 2.0 Performance Series shocks for damping tuned to the new height.
Features
- Lift height: 4 in. front (coil spring), 3-5 in. rear (spacer)
- Replacement crossmember hardware engineered for the new ride height
- BDS progressive-rate coil springs deliver the lift with a smooth, predictable ride
- 4-link setup improves articulation and axle control over the factory design
- Lower control arms help locate the axle at the new ride height
- Includes FOX 2.0 Performance Series shocks
- Clearance for tires up to 35 x 12.5 in.
Specifications
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Engine Type
- Gas
- Front Lift Height
- 4 in.
- Front Lift Method
- Coil Spring
- Max Tire Size
- 35 x 12.5 in.
- Rear Lift Height
- 3-5 in.
- Rear Lift Method
- Spacer
- Shock Option
- FOX 2.0 Performance Series
- Shocks Included
- Yes
