Description

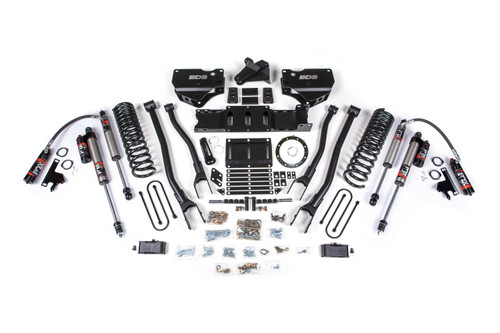

The 4 Inch Lift Kit w/ 4-Link | Ram 3500 (19-24) 4WD | Diesel | w/ Factory Rear Overload Leaf / 8 Bolt / FOX 2.5 Performance Elite is a complete suspension upgrade that raises your Ram 3500 (2019-2024) 4WD and makes room for larger rubber. It raises the front 4 in. and the rear 3 in. Once installed, it makes room for tires up to 35 x 12.5 in.
This version is matched with FOX 2.5 Performance Elite shocks for damping tuned to the new height. Rear lift is handled by the with factory rear overload leaf option. It is configured for the 8 Bolt transfer case indexing ring.
Features
- Lift height: 4 in. front (coil spring), 3 in. rear (block)
- Replacement crossmember hardware engineered for the new ride height
- BDS progressive-rate coil springs deliver the lift with a smooth, predictable ride
- Heavy-duty rear lift blocks for added height without sacrificing load capacity
- New U-bolts sized for the lifted rear
- 4-link setup improves articulation and axle control over the factory design
- Includes FOX 2.5 Performance Elite shocks
- Clearance for tires up to 35 x 12.5 in.
Specifications
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Front Lift Height
- 4 in.
- Front Lift Method
- Coil Spring
- Indexing Ring Option
- 8 Bolt
- Max Tire Size
- 35 x 12.5 in.
- Rear Lift Height
- 3 in.
- Rear Lift Method
- Block
- Rear Lift Option
- With Factory Rear Overload Leaf
- Shock Option
- FOX 2.5 Performance Elite
- Shocks Included
- Yes
