Description

The 3.5 Inch Lift Kit | Ford Ranger (19-23) 4WD | NX2 Nitro Series / Cast Aluminum is a complete suspension upgrade that raises your Ford Ranger (2019-2023) 4WD and makes room for larger rubber. It raises the front 3.5 in. and the rear 1 in. Once installed, it makes room for tires up to 285/65.

This version includes NX2 Nitro Series rear shocks. It is configured for vehicles with Cast Aluminum OE knuckles.

Features

  • Lift height: 3.5 in. front (strut spacer), 1 in. rear (shackle)
  • Front differential relocation brackets to protect CV joint angles
  • Upper control arms correct alignment and add strength over stock
  • Includes quality ball joints for long-term durability
  • Greaseable pivots make routine service simple
  • Top-mount strut spacers add front height on a bolt-on basis
  • Includes NX2 Nitro Series shocks
  • Clearance for tires up to 285/65

Specifications

Country of Origin (Primary)
US
Life Cycle Status Code
2
Drivetrain
4WD
Front Lift Height
3.5 in.
Front Lift Method
Strut Spacer
Max Tire Size
285/65
OE Knuckle Type
Cast Aluminum
Rear Lift Height
1 in.
Rear Lift Method
Shackle
Rear Shock Option
NX2 Nitro Series
Shocks Included
Yes
California Prop 65 Notice
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Color
Silver
Drive
4WD
Finish
Powdercoat

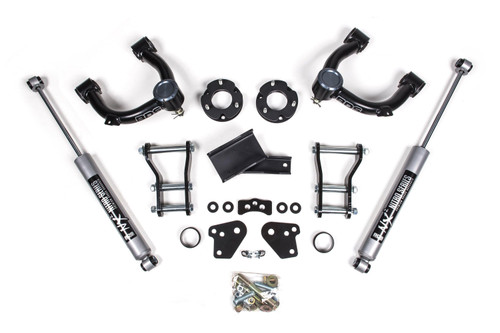

Kit Components
Includes one BDS013351, 2019-2023 Ford Ranger 3.5 inch Box Kit, UPC Code 658848613328Includes two BDS85880, Shock- 25.95 x 15.40 x 2 - EB1/EB1, UPC Code 711745609952
Last Update
2026-10-20 16:59:20
Lift Height
3.5 Inch
Sold As
Kit
Universal
No
Vehicle Type
Truck/SUV
Warranty
Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
3.5 Inch Lift Kit | Ford Ranger (19-23) 4WD | NX2 Nitro Series / Cast Aluminum
