Description

The 6 Inch Lift Kit | Chevy Silverado or GMC Sierra 1500 (19-26) 4WD | Diesel | NX2 Nitro Series / Strut Spacer is a complete suspension upgrade that raises your Chevy Silverado or GMC Sierra 1500 (2019-2026) 4WD and makes room for larger rubber. It raises the front 6 in. and the rear 5 in. Once installed, it makes room for tires up to 35 x 12.5 in.

This version includes NX2 Nitro Series rear shocks. Front shock option: Strut Spacer.

Features

  • Lift height: 6 in. front (cross-member), 5 in. rear (block)
  • Heavy 1/4 in. laser-cut steel crossmembers that keep the underside clear
  • Front skid plate adds underbody protection and stiffens the front subframe
  • CNC-machined ductile iron knuckles restore proper steering geometry at the taller height
  • Differential drop brackets help keep CV and driveline angles in check
  • Includes NX2 Nitro Series shocks
  • Clearance for tires up to 35 x 12.5 in.

Specifications

Life Cycle Status Code
2
Drivetrain
4WD
Engine Type
Diesel
Front Lift Height
6 in.
Front Lift Method
Cross-Member
Front Shock Option
Strut Spacer
Max Tire Size
35 x 12.5 in.
Rear Lift Height
5 in.
Rear Lift Method
Block
Rear Shock Option
NX2 Nitro Series
Shocks Included
Yes
California Prop 65 Notice
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Color
Silver
Drive
4WD
Finish
Powdercoat
Fuel Type
Diesel

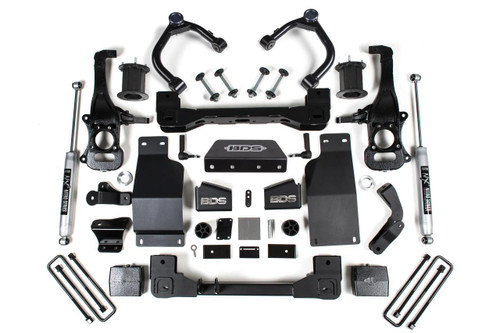

Kit Components
Includes one BDS011518, 2019-2024 Chevy/GMC 1500 5 inch Rear Box Kit, UPC Code 658848611935Includes one BDS021664, 2019-2024 Chevy/GMC 1500 Knuckle Box 1of2 w/UCA (4 inch and 6 inch Compatible), UPC Code 658848615056Includes one BDS021665, 2019-2024
Last Update
2026-10-20 16:35:54
Lift Height
6.0 Inch
Sold As
Kit
Universal
No
Vehicle Type
Truck/SUV
Warranty
Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
