Description

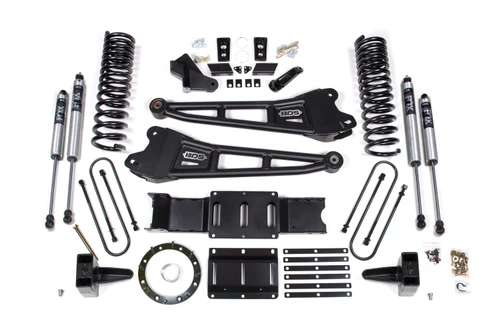

Give your Ram 3500 (2019-2024) 4WD more height, room for bigger tires, and better trail capability with the 6 Inch Lift Kit w/ Radius Arm | Ram 3500 (19-24) 4WD | Diesel | w/ Factory Rear Overload Leaf / 8 Bolt / FOX 2.0 Performance Series. It raises the front 6 in. and the rear 5 in. Once installed, it makes room for tires up to 37 x 12.5 in.
This version is matched with FOX 2.0 Performance Series shocks for damping tuned to the new height. Rear lift is handled by the with factory rear overload leaf option. It is configured for the 8 Bolt transfer case indexing ring.
Features
- Lift height: 6 in. front (coil spring), 5 in. rear (block)
- Replacement crossmember hardware engineered for the new ride height
- BDS progressive-rate coil springs deliver the lift with a smooth, predictable ride
- Heavy-duty rear lift blocks for added height without sacrificing load capacity
- New U-bolts sized for the lifted rear
- Radius arms re-establish caster and axle position at the new height
- Includes FOX 2.0 Performance Series shocks
- Clearance for tires up to 37 x 12.5 in.
Specifications
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Front Lift Height
- 6 in.
- Front Lift Method
- Coil Spring
- Indexing Ring Option
- 8 Bolt
- Max Tire Size
- 37 x 12.5 in.
- Rear Lift Height
- 5 in.
- Rear Lift Method
- Block
- Rear Lift Option
- With Factory Rear Overload Leaf
- Shock Option
- FOX 2.0 Performance Series
- Shocks Included
- Yes
