Description

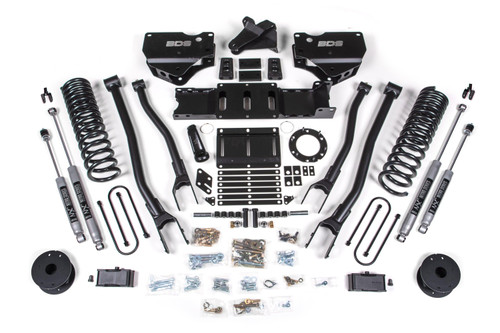

Give your Ram 3500 w/ Rear Air Ride (2019-2024) 4WD more height, room for bigger tires, and better trail capability with the 4 Inch Lift Kit w/ 4-Link | Ram 3500 w/ Rear Air Ride (19-24) 4WD | Diesel | 6 Bolt / NX2 Nitro Series. It raises the front 4 in. and the rear 3 in. Once installed, it makes room for tires up to 35 x 12.5 in.
This version is matched with NX2 Nitro Series shocks for damping tuned to the new height. It is configured for the 6 Bolt transfer case indexing ring.
Features
- Lift height: 4 in. front (coil spring), 3 in. rear (block)
- Replacement crossmember hardware engineered for the new ride height
- BDS progressive-rate coil springs deliver the lift with a smooth, predictable ride
- Heavy-duty rear lift blocks for added height without sacrificing load capacity
- New U-bolts sized for the lifted rear
- 4-link setup improves articulation and axle control over the factory design
- Includes NX2 Nitro Series shocks
- Clearance for tires up to 35 x 12.5 in.
Specifications
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Engine Type
- Diesel
- Front Lift Height
- 4 in.
- Front Lift Method
- Coil Spring
- Indexing Ring Option
- 6 Bolt
- Max Tire Size
- 35 x 12.5 in.
- Rear Lift Height
- 3 in.
- Rear Lift Method
- Block
- Shock Option
- NX2 Nitro Series
- Shocks Included
- Yes
- Brand Logo
- Resources & Documents
- California Prop 65 Notice
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Color
- Silver
- Drive
- 4WD
- Finish
- Powdercoat
- Fuel Type
- Diesel
- Kit Components
- Includes one BDS012319, 2019-2024 Ram 3500 Auto Level Air Suspension 3 inch Rear w/o overload, UPC Code 711745611474Includes one BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2, UPC Code 658848612437Includes one BDS012434, 201
- Last Update
- 2026-10-20 16:42:17
- Lift Height
- 4.0 Inch
- Sold As
- Kit
- Universal
- No
- Vehicle Type
- Truck/SUV
- Warranty
- Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
