Description

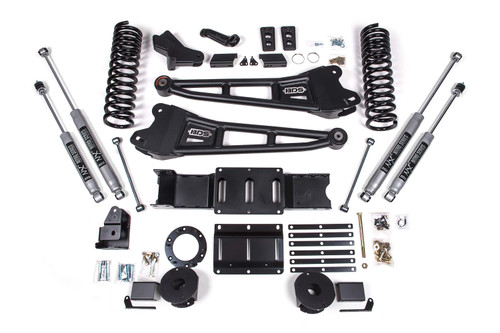

The 6 Inch Lift Kit w/ Radius Arm | Ram 2500 w/ Rear Air Ride (19-24) 4WD | Diesel | NX2 Nitro Series is a complete suspension upgrade that raises your Ram 2500 w/ Rear Air Ride (2019-2024) 4WD and makes room for larger rubber. It raises the front 6 in. and the rear 5 in. Once installed, it makes room for tires up to 37 x 12.5 in.

This version is matched with NX2 Nitro Series shocks for damping tuned to the new height.

Features

  • Lift height: 6 in. front (coil spring), 5 in. rear (spacer)
  • Replacement crossmember hardware engineered for the new ride height
  • BDS progressive-rate coil springs deliver the lift with a smooth, predictable ride
  • Radius arms re-establish caster and axle position at the new height
  • Track bar components keep the axle centered under the vehicle
  • Pitman arm correction keeps steering geometry in line
  • Includes NX2 Nitro Series shocks
  • Clearance for tires up to 37 x 12.5 in.

Specifications

Life Cycle Status Code
2
Drivetrain
4WD
Engine Type
Diesel
Front Lift Height
6 in.
Front Lift Method
Coil Spring
Max Tire Size
37 x 12.5 in.
Rear Lift Height
5 in.
Rear Lift Method
Spacer
Shock Option
NX2 Nitro Series
Shocks Included
Yes
California Prop 65 Notice
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Color
Silver
Drive
4WD
Finish
Powdercoat
Fuel Type
Diesel
Kit Components
Includes one BDS012528, 2019-2024 Ram 2500 5 inch Rear Air Ride Box Kit, UPC Code 658848612659Includes one BDS012614, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 6 inch Radius Arm Front Box Kit, UPC Code 658848612758Includes one BDS032602, 2013-2024 Ram
Last Update
2026-10-20 16:41:29
Lift Height
6.0 Inch
Sold As
Kit
Universal
No
Vehicle Type
Truck/SUV
Warranty
Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
