Description

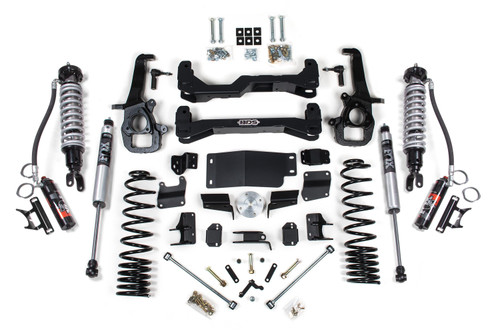

Built for drivers who want more clearance and a stronger stance, the 5 Inch Lift Kit | FOX 2.5 Performance Elite Coil-Over | Ram 1500 Rebel (19-24) 4WD | FOX 2.0 Performance Series / Standard transforms your Ram 1500 Rebel (2019-2024) 4WD. It raises the front 5 in. and the rear 3 in. Once installed, it makes room for tires up to 37 x 12.5 in.
This version includes FOX 2.0 Performance Series rear shocks. It is configured for vehicles with Standard OE knuckles.
Features
- Lift height: 5 in. front (cross-member), 3 in. rear (coil spring)
- Tall-arch 1/4 in. steel crossmembers built for clearance and strength
- Bolt-together skid plate system shields key components off-road
- CNC-machined ductile iron knuckles restore proper steering geometry at the taller height
- Differential drop brackets help keep CV and driveline angles in check
- Includes FOX 2.0 Performance Series shocks
- Clearance for tires up to 37 x 12.5 in.
Specifications
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Front Lift Height
- 5 in.
- Front Lift Method
- Cross-Member
- Max Tire Size
- 37 x 12.5 in.
- OE Knuckle Type
- Standard
- Rear Lift Height
- 3 in.
- Rear Lift Method
- Coil Spring
- Rear Shock Option
- FOX 2.0 Performance Series
- Shocks Included
- Yes
- Brand Logo
- Resources & Documents
- California Prop 65 Notice
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Drive
- 4WD
- Kit Components
- Includes one BDS022508, 2019-2023 Ram 1500 Rear Box Kit, UPC Code 658848615407Includes one BDS022632, 2019-2023 Ram 1500 Knuckle Box Kit - DRV, UPC Code 658848615520Includes one BDS022633, 2019-2023 Ram 1500 Knuckle Box Kit - PASS, UPC Code 65884861
- Last Update
- 2026-10-20 16:39:33
- Lift Height
- 5.0 Inch
- Sold As
- Kit
- Universal
- No
- Vehicle Type
- Truck/SUV
- Warranty
- Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
