Description

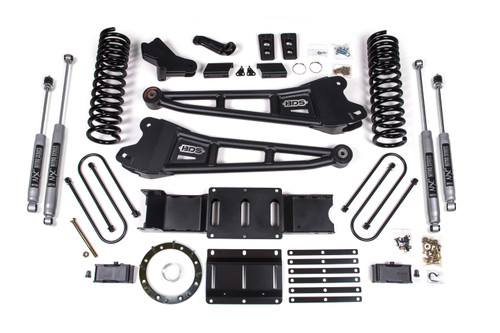

The 4 Inch Lift Kit w/ Radius Arm | 2 Inch Rear Block | Ram 3500 (19-24) 4WD | Diesel | w/o Factory Rear Overload Leaf / 6 Bolt / NX2 Nitro Series is a complete suspension upgrade that raises your Ram 3500 (2019-2024) 4WD and makes room for larger rubber. It raises the front 4 in. and the rear 2 in. Once installed, it makes room for tires up to 32 x 12.5 in.
This version is matched with NX2 Nitro Series shocks for damping tuned to the new height. Rear lift is handled by the without factory rear overload leaf option. It is configured for the 6 Bolt transfer case indexing ring.
Features
- Lift height: 4 in. front (radius arm), 2 in. rear (block)
- Replacement crossmember hardware engineered for the new ride height
- BDS progressive-rate coil springs deliver the lift with a smooth, predictable ride
- Heavy-duty rear lift blocks for added height without sacrificing load capacity
- New U-bolts sized for the lifted rear
- Radius arms re-establish caster and axle position at the new height
- Includes NX2 Nitro Series shocks
- Clearance for tires up to 32 x 12.5 in.
Specifications
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Front Lift Height
- 4 in.
- Front Lift Method
- Radius Arm
- Indexing Ring Option
- 6 Bolt
- Max Tire Size
- 32 x 12.5 in.
- Rear Lift Height
- 2 in.
- Rear Lift Method
- Block
- Rear Lift Option
- Without Factory Rear Overload Leaf
- Shock Option
- NX2 Nitro Series
- Shocks Included
- Yes
