Description

The 3 Inch Lift Kit | Jeep Wrangler JL (18-27) 4-Door | NX2 Nitro Series is a complete suspension upgrade that raises your Jeep Wrangler JL (2018-2027) 4-Door and makes room for larger rubber. It adds 3 in. of lift at both ends. Once installed, it makes room for tires up to 35 x 12.5 in.

This version is matched with NX2 Nitro Series shocks for damping tuned to the new height.

Features

  • Lift height: 3 in. front (coil spring), 3 in. rear (coil spring)
  • BDS progressive-rate coil springs deliver the lift with a smooth, predictable ride
  • Lower control arms help locate the axle at the new ride height
  • Track bar components keep the axle centered under the vehicle
  • Sway bar disconnects let you free up articulation on the trail
  • Includes NX2 Nitro Series shocks
  • Clearance for tires up to 35 x 12.5 in.

Specifications

Country of Origin (Primary)
US
Life Cycle Status Code
2
Front Lift Height
3 in.
Front Lift Method
Coil Spring
Max Tire Size
35 x 12.5 in.
Rear Lift Height
3 in.
Rear Lift Method
Coil Spring
Shock Option
NX2 Nitro Series
Shocks Included
Yes
California Prop 65 Notice
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Color
Silver
Doors
4 Door
Finish
Powdercoat
Kit Components
Includes one BDS014330, 2018-2025 Jeep Wrangler JL 3 inch Lift Box Kit, UPC Code 658848614066Includes one BDS034340, 2018-2025 Jeep Wrangler JL 3 inch Front Coil Spring Box Kit, UPC Code 658848616800Includes one BDS034346, 2018-2025 Jeep Wrangler JL
Last Update
2026-10-20 17:03:36
Lift Height
3.0 Inch
Sold As
Kit
Universal
No
Vehicle Type
Jeep
Warranty
Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts

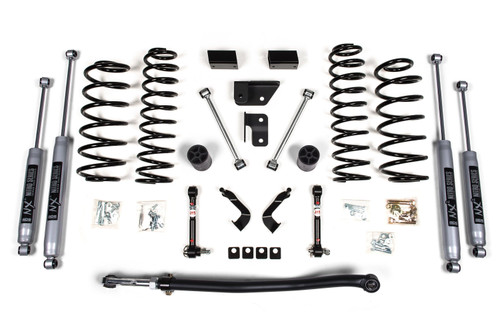

3 Inch Lift Kit | Jeep Wrangler JL (18-27) 4-Door | NX2 Nitro Series

3 Inch Lift Kit | Jeep Wrangler JL (18-27) 4-Door | NX2 Nitro Series

BDSBDS1437H
