Description

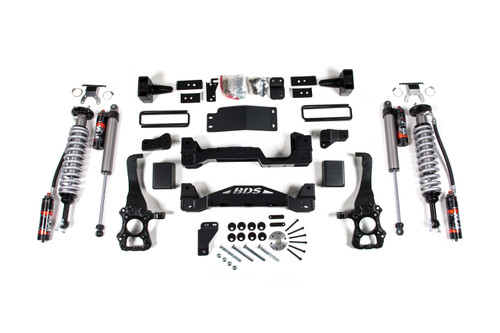

The 6 Inch Lift Kit | FOX 2.5 Performance Elite Coil-Over | Ford F150 (15-20) 4WD | FOX 2.5 Performance Elite is a complete suspension upgrade that raises your Ford F150 (2015-2020) 4WD and makes room for larger rubber. It raises the front 6 in. and the rear 5 in. Once installed, it makes room for tires up to 35 x 12.5 in.
This version includes FOX 2.5 Performance Elite rear shocks.
Features
- Lift height: 6 in. front (cross-member), 5 in. rear (block)
- Tall-arch 1/4 in. steel crossmembers built for clearance and strength
- Front skid plate adds underbody protection and stiffens the front subframe
- CNC-machined ductile iron knuckles restore proper steering geometry at the taller height
- Differential drop brackets help keep CV and driveline angles in check
- Includes FOX 2.5 Performance Elite shocks
- Clearance for tires up to 35 x 12.5 in.
Specifications
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Front Lift Height
- 6 in.
- Front Lift Method
- Cross-Member
- Max Tire Size
- 35 x 12.5 in.
- Rear Lift Height
- 5 in.
- Rear Lift Method
- Block
- Rear Shock Option
- FOX 2.5 Performance Elite
- Shocks Included
- Yes
