Description

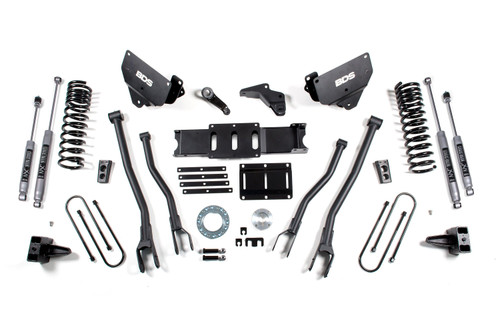

Built for drivers who want more clearance and a stronger stance, the 6 Inch Lift Kit w/ 4-Link | Ram 3500 (13-18) 4WD | Diesel | Leaf Springs / 8 Bolt / FOX 2.5 Performance Elite transforms your Ram 3500 (2013-2018) 4WD. It provides 6 in. of front lift. Once installed, it makes room for tires up to 37 x 12.5 in.
This version is matched with FOX 2.5 Performance Elite shocks for damping tuned to the new height. Rear lift is handled by the leaf springs option. It is configured for the 8 Bolt transfer case indexing ring.
Features
- Lift height: 6 in. front (coil spring)
- BDS progressive-rate coil springs deliver the lift with a smooth, predictable ride
- Heavy-duty rear lift blocks for added height without sacrificing load capacity
- New U-bolts sized for the lifted rear
- 4-link setup improves articulation and axle control over the factory design
- Lower control arms help locate the axle at the new ride height
- Includes FOX 2.5 Performance Elite shocks
- Clearance for tires up to 37 x 12.5 in.
Specifications
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Engine Type
- Diesel
- Front Lift Height
- 6 in.
- Front Lift Method
- Coil Spring
- Indexing Ring Option
- 8 Bolt
- Max Tire Size
- 37 x 12.5 in.
- Rear Lift Option
- Leaf Springs
- Shock Option
- FOX 2.5 Performance Elite
- Shocks Included
- Yes
