Description

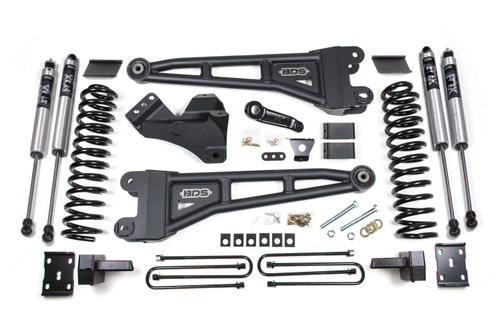

Give your Ford F250/F350 Super Duty (2011-2016) 4WD more height, room for bigger tires, and better trail capability with the 4 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (11-16) 4WD | Diesel | 5 Inch Block Kit / FOX 2.0 Performance Series. It adds 4 in. of lift at both ends. Once installed, it makes room for tires up to 35 x 12.5 in.

This version is matched with FOX 2.0 Performance Series shocks for damping tuned to the new height. Rear lift is handled by the 5 in. block kit option.

Features

  • Lift height: 4 in. front (coil spring), 4 in. rear
  • BDS progressive-rate coil springs deliver the lift with a smooth, predictable ride
  • Fabricated steel lift blocks raise and level the rear
  • U-bolt flip kit tucks hardware up for more clearance under the axle
  • Radius arms re-establish caster and axle position at the new height
  • Includes FOX 2.0 Performance Series shocks
  • Clearance for tires up to 35 x 12.5 in.

Specifications

Life Cycle Status Code
2
Drivetrain
4WD
Engine Type
Diesel
Front Lift Height
4 in.
Front Lift Method
Coil Spring
Max Tire Size
35 x 12.5 in.
Rear Lift Height
4 in.
Rear Lift Option
5 in. Block Kit
Shock Option
FOX 2.0 Performance Series
Shocks Included
Yes
California Prop 65 Notice
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Color
Clear
Drive
4WD
Finish
Anodized
Fuel Type
Diesel
Kit Components
Includes one BDS013424, 2011-2016 Ford F250/F350 4 inch Radius Arm Front Box Kit, UPC Code 658848613502Includes one BDS013519, 2005-up Ford F250/F350 5in Rear Block, UPC Code 658848613625Includes one BDS033411, 2005-2024 Ford F250/F350 Superduty 4 i
Last Update
2026-10-20 16:54:50
Lift Height
4.0 Inch
Sold As
Kit
Universal
No
Vehicle Type
Truck/SUV
Warranty
Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
4 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (11-16) 4WD | Diesel | 5 Inch Block Kit / FOX 2.0 Performance Series
