Description

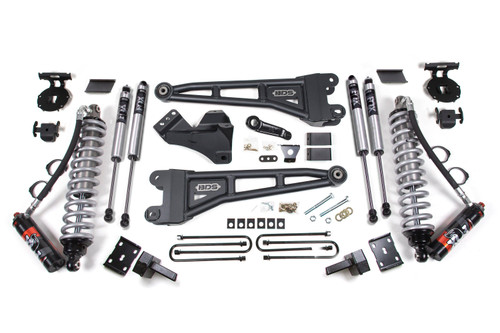

The 4 Inch Lift Kit w/ Radius Arm | FOX 2.5 Performance Elite Coil-Over Conversion | Ford F250/F350 Super Duty (11-16) 4WD | Diesel | 4 Inch Block Kit is a complete suspension upgrade that raises your Ford F250/F350 Super Duty (2011-2016) 4WD and makes room for larger rubber. It provides 4 in. of front lift. Once installed, it makes room for tires up to 35 x 12.5 in.

Rear lift is handled by the 4 in. block kit option.

Features

  • Lift height: 4 in. front (coil-over)
  • Fabricated steel lift blocks raise and level the rear
  • U-bolt flip kit tucks hardware up for more clearance under the axle
  • Radius arms re-establish caster and axle position at the new height
  • Track bar components keep the axle centered under the vehicle
  • Pitman arm correction keeps steering geometry in line
  • Clearance for tires up to 35 x 12.5 in.

Specifications

Life Cycle Status Code
2
Drivetrain
4WD
Engine Type
Diesel
Front Lift Height
4 in.
Front Lift Method
Coil-Over
Max Tire Size
35 x 12.5 in.
Rear Lift Option
4 in. Block Kit
California Prop 65 Notice
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Drive
4WD
Fuel Type
Diesel
Kit Components
Includes one BDS013424, 2011-2016 Ford F250/F350 4 inch Radius Arm Front Box Kit, UPC Code 658848613502Includes one BDS013519, 2005-up Ford F250/F350 5in Rear Block, UPC Code 658848613625Includes one BDS123212, 2005-2016 Ford F250/F350 Super Duty Co
Last Update
2026-10-20 16:54:50
Lift Height
4.0 Inch
Sold As
Kit
Universal
No
Vehicle Type
Truck/SUV
Warranty
Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
