Description

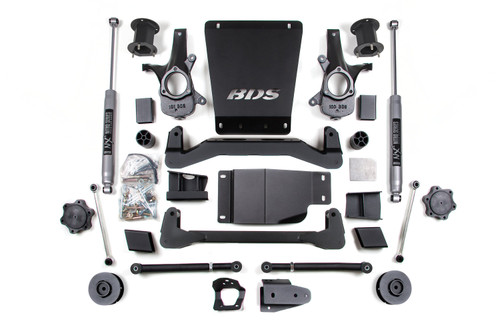

The 4.5 Inch Lift Kit | Chevy/GMC Avalanche, Suburban, Tahoe, or Yukon 1500 (07-14) 4WD | 3 Inch Coil Spacer / NX2 Nitro Series is a complete suspension upgrade that raises your Chevy/GMC Avalanche, Suburban, Tahoe, or Yukon 1500 (2007-2014) 4WD and makes room for larger rubber. It raises the front 4.5 in. and the rear 3 in. Once installed, it makes room for tires up to 32 x 11.5 in.
This version includes NX2 Nitro Series rear shocks. Rear lift is handled by the 3 in. coil spacer option.
Features
- Lift height: 4.5 in. front (strut spacer), 3 in. rear (coil spacer)
- Heavy 1/4 in. laser-cut steel crossmembers that keep the underside clear
- Bolt-together skid plate system shields key components off-road
- CNC-machined ductile iron knuckles restore proper steering geometry at the taller height
- Front differential relocation brackets to protect CV joint angles
- Includes NX2 Nitro Series shocks
- Clearance for tires up to 32 x 11.5 in.
Specifications
- Drivetrain
- 4WD
- Front Lift Height
- 4.5 in.
- Front Lift Method
- Strut Spacer
- Max Tire Size
- 32 x 11.5 in.
- Rear Lift Height
- 3 in.
- Rear Lift Method
- Coil Spacer
- Rear Lift Option
- 3 in. Coil Spacer
- Rear Shock Option
- NX2 Nitro Series
- Shocks Included
- Yes
