Description

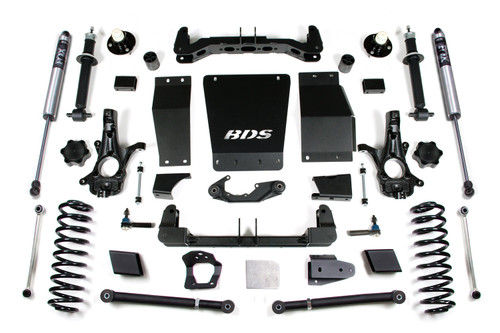

Give your Chevy/GMC Suburban, Tahoe, Yukon/XL 1500 (2015-2019) 4WD more height, room for bigger tires, and better trail capability with the 6 Inch Lift Kit | Chevy/GMC Suburban, Tahoe, Yukon/XL 1500 (15-19) 4WD | FOX 2.0 Performance Series / Cast Steel. It raises the front 6 in. and the rear 5 in. Once installed, it makes room for tires up to 33 x 12.5 in.

This version includes FOX 2.0 Performance Series rear shocks. It is configured for trucks with Cast Steel factory control arms.

Features

  • Lift height: 6 in. front (cross-member), 5 in. rear (coil spring)
  • Heavy 1/4 in. laser-cut steel crossmembers that keep the underside clear
  • Bolt-together skid plate system shields key components off-road
  • CNC-machined ductile iron knuckles restore proper steering geometry at the taller height
  • Differential drop brackets help keep CV and driveline angles in check
  • Includes FOX 2.0 Performance Series shocks
  • Clearance for tires up to 33 x 12.5 in.

Specifications

Country of Origin (Primary)
US
Life Cycle Status Code
2
Drivetrain
4WD
Factory Control Arm Type
Cast Steel
Front Lift Height
6 in.
Front Lift Method
Cross-Member
Max Tire Size
33 x 12.5 in.
Rear Lift Height
5 in.
Rear Lift Method
Coil Spring
Rear Shock Option
FOX 2.0 Performance Series
Shocks Included
Yes
California Prop 65 Notice
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Color
Clear
Drive
4WD
Finish
Anodized
Kit Components
Includes one BDS021507, 2015+ GM SUV Rear 5in Box Kit, UPC Code 658848614721Includes one BDS021660, 14-18 GM 1500 - 15-19 GM SUV Knuckle Box - Cast, UPC Code 658848615018Includes one BDS021662, 14-18 GM 1500 - 15-19 GM SUV 1500 6 inch Frt Box Kit (1
Last Update
2026-10-20 15:42:15
Lift Height
6.0 Inch
Sold As
Kit
Universal
No
Vehicle Type
Truck/SUV
Warranty
Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
6 Inch Lift Kit | Chevy/GMC Suburban, Tahoe, Yukon/XL 1500 (15-19) 4WD | FOX 2.0 Performance Series / Cast Steel

6 Inch Lift Kit | Chevy/GMC Suburban, Tahoe, Yukon/XL 1500 (15-19) 4WD | FOX 2.0 Performance Series / Cast Steel

BDSBDS731FS
