Description

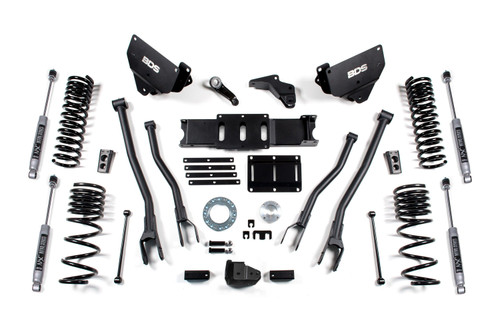

Built for drivers who want more clearance and a stronger stance, the 5.5 Inch Lift Kit w/ 4-Link | Ram 2500 (14-18) 4WD | Gas | NX2 Nitro Series transforms your Ram 2500 (2014-2018) 4WD. It raises the front 5.5 in. and the rear 4.5 in. Once installed, it makes room for tires up to 37 x 12.5 in.
This version is matched with NX2 Nitro Series shocks for damping tuned to the new height.
Features
- Lift height: 5.5 in. front (coil spring), 4.5 in. rear (coil spring)
- Replacement crossmember hardware engineered for the new ride height
- BDS progressive-rate coil springs deliver the lift with a smooth, predictable ride
- 4-link setup improves articulation and axle control over the factory design
- Lower control arms help locate the axle at the new ride height
- Includes NX2 Nitro Series shocks
- Clearance for tires up to 37 x 12.5 in.
Specifications
- Country of Origin (Primary)
- US
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Engine Type
- Gas
- Front Lift Height
- 5.5 in.
- Front Lift Method
- Coil Spring
- Max Tire Size
- 37 x 12.5 in.
- Rear Lift Height
- 4.5 in.
- Rear Lift Method
- Coil Spring
- Shock Option
- NX2 Nitro Series
- Shocks Included
- Yes
- Brand Logo
- Resources & Documents
- California Prop 65 Notice
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Color
- Silver
- Drive
- 4WD
- Finish
- Powdercoat
- Fuel Type
- Gas
- Kit Components
- Includes one BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2), UPC Code 658848612345Includes one BDS012458, 2014-2018 Ram 2500 4.5 inch Rear Coil Box Kit, UPC Code 658848612475Includes one BDS012604, 2013-2018 Ram 3500 6 inch 4-Link Box Kit (1of2
- Last Update
- 2026-10-20 16:53:58
- Lift Height
- 5.5 Inch
- Sold As
- Kit
- Universal
- No
- Vehicle Type
- Truck/SUV
- Warranty
- Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
