Description

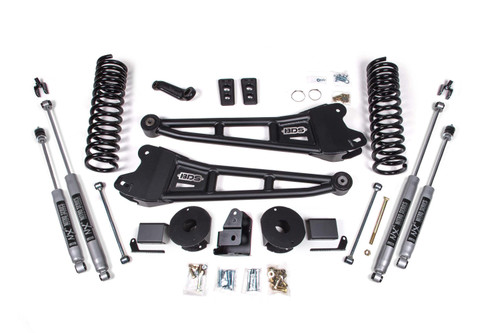

The 4 Inch Lift Kit w/ Radius Arm | Ram 2500 w/ Rear Air Ride (14-18) 4WD | Diesel | NX2 Nitro Series is a complete suspension upgrade that raises your Ram 2500 w/ Rear Air Ride (2014-2018) 4WD and makes room for larger rubber. It raises the front 4 in. and the rear 2.5 in. Once installed, it makes room for tires up to 35 x 12.5 in.

This version is matched with NX2 Nitro Series shocks for damping tuned to the new height.

Features

  • Lift height: 4 in. front (coil spring), 2.5 in. rear (spacer)
  • BDS progressive-rate coil springs deliver the lift with a smooth, predictable ride
  • Radius arms re-establish caster and axle position at the new height
  • Track bar components keep the axle centered under the vehicle
  • Pitman arm correction keeps steering geometry in line
  • Extended sway bar links maintain proper bar angle after the lift
  • Includes NX2 Nitro Series shocks
  • Clearance for tires up to 35 x 12.5 in.

Specifications

Life Cycle Status Code
2
Drivetrain
4WD
Engine Type
Diesel
Front Lift Height
4 in.
Front Lift Method
Coil Spring
Max Tire Size
35 x 12.5 in.
Rear Lift Height
2.5 in.
Rear Lift Method
Spacer
Shock Option
NX2 Nitro Series
Shocks Included
Yes
California Prop 65 Notice
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Color
Silver
Drive
4WD
Finish
Powdercoat
Fuel Type
Diesel
Kit Components
Includes one BDS012359, 14-18 Ram 2500 3.5 inch Rear AirRide Box Kit, UPC Code 658848612314Includes one BDS012432, 2014-2018 Ram 2500 4wd 4 inch Radius Arm Front Box Kit, UPC Code 711745611702Includes one BDS032401, 2013-2018 Ram 3500 / 2014-2018 25
Last Update
2026-10-20 16:38:40
Lift Height
4.0 Inch
Sold As
Kit
Universal
No
Vehicle Type
Truck/SUV
Warranty
Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
