Description

Give your Ram 3500 w/ Rear Air Ride (2013-2018) 4WD more height, room for bigger tires, and better trail capability with the 6 Inch Lift Kit w/ 4-Link | Ram 3500 w/ Rear Air Ride (13-18) 4WD | Diesel | 8 Bolt / NX2 Nitro Series. It adds 6 in. of lift at both ends. Once installed, it makes room for tires up to 37 x 12.5 in.

This version is matched with NX2 Nitro Series shocks for damping tuned to the new height. It is configured for the 8 Bolt transfer case indexing ring.

Features

  • Lift height: 6 in. front (coil spacer), 6 in. rear (coil spacer)
  • BDS progressive-rate coil springs deliver the lift with a smooth, predictable ride
  • Heavy-duty rear lift blocks for added height without sacrificing load capacity
  • New U-bolts sized for the lifted rear
  • 4-link setup improves articulation and axle control over the factory design
  • Lower control arms help locate the axle at the new ride height
  • Includes NX2 Nitro Series shocks
  • Clearance for tires up to 37 x 12.5 in.

Specifications

Country of Origin (Primary)
US
Life Cycle Status Code
2
Drivetrain
4WD
Engine Type
Diesel
Front Lift Height
6 in.
Front Lift Method
Coil Spacer
Indexing Ring Option
8 Bolt
Max Tire Size
37 x 12.5 in.
Rear Lift Height
6 in.
Rear Lift Method
Coil Spacer
Shock Option
NX2 Nitro Series
Shocks Included
Yes
California Prop 65 Notice
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Color
Silver
Drive
4WD
Finish
Powdercoat
Fuel Type
Diesel
Kit Components

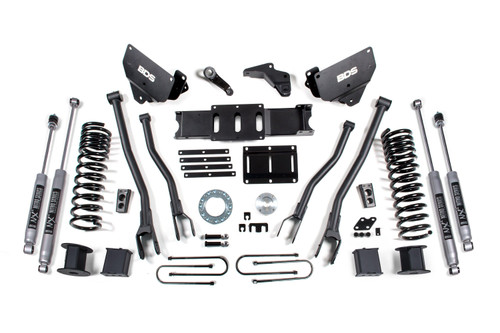

Includes one BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2), UPC Code 658848612345Includes one BDS012604, 2013-2018 Ram 3500 6 inch 4-Link Box Kit (1of2), UPC Code 658848612703Includes one BDS012618, 2013-2018 Ram 3500 Auto Level Air Suspension
Last Update
2026-10-20 16:50:23
Lift Height
6.0 Inch
Sold As
Kit
Universal
No
Vehicle Type
Truck/SUV
Warranty
Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
6 Inch Lift Kit w/ 4-Link | Ram 3500 w/ Rear Air Ride (13-18) 4WD | Diesel | 8 Bolt / NX2 Nitro Series

6 Inch Lift Kit w/ 4-Link | Ram 3500 w/ Rear Air Ride (13-18) 4WD | Diesel | 8 Bolt / NX2 Nitro Series

BDSBDS1650H
