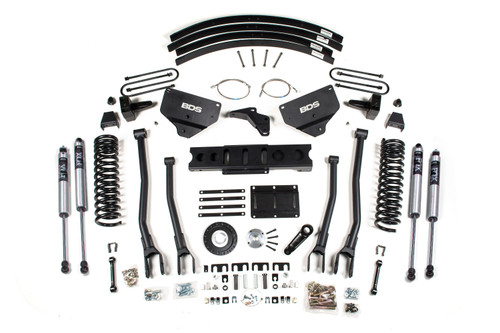

The 8 Inch Lift Kit w/ 4-Link | Ram 3500 (13-18) 4WD | Diesel | 5 Inch Block Kit and Add-A-Leaf / 8 Bolt / FOX 2.0 Performance Series is a complete suspension upgrade that raises your Ram 3500 (2013-2018) 4WD and makes room for larger rubber. It raises the front 8 in. and the rear 5 in. Once installed, it makes room for tires up to 40 x 13.5 in.
This version is matched with FOX 2.0 Performance Series shocks for damping tuned to the new height. Rear lift is handled by the 5 in. block kit and add-a-leaf option. It is configured for the 8 Bolt transfer case indexing ring.
Features
- Lift height: 8 in. front (coil spring), 5 in. rear
- Replacement crossmember hardware engineered for the new ride height
- BDS progressive-rate coil springs deliver the lift with a smooth, predictable ride
- Leaf springs engineered for the added lift and load-carrying duty
- Add-a-leaf option for extra rear height and load support
- New U-bolts sized for the lifted rear
- Includes FOX 2.0 Performance Series shocks
- Clearance for tires up to 40 x 13.5 in.
- Country of Origin (Primary):
- US
- Life Cycle Status Code:
- 2
- Drivetrain:
- 4WD
- Engine Type:
- Diesel
- Front Lift Height:
- 8 in.
- Front Lift Method:
- Coil Spring
- Indexing Ring Option:
- 8 Bolt
- Max Tire Size:
- 40 x 13.5 in.
- Rear Lift Height:
- 5 in.
- Rear Lift Option:
- 5 in. Block Kit and Add-A-Leaf
- Shock Option:
- FOX 2.0 Performance Series
- Shocks Included:
- Yes
