Description

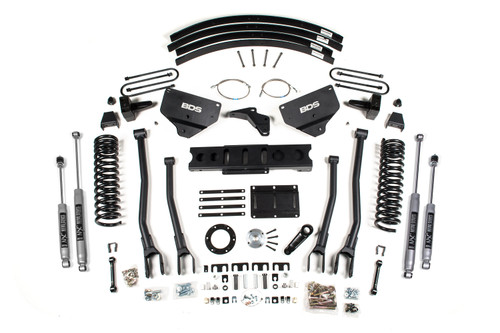

The 8 Inch Lift Kit w/ 4-Link | Ram 3500 (13-18) 4WD | Diesel | 5 Inch Block Kit and Add-A-Leaf / 6 Bolt / NX2 Nitro Series is a complete suspension upgrade that raises your Ram 3500 (2013-2018) 4WD and makes room for larger rubber. It raises the front 8 in. and the rear 5 in. Once installed, it makes room for tires up to 40 x 13.5 in.
This version is matched with NX2 Nitro Series shocks for damping tuned to the new height. Rear lift is handled by the 5 in. block kit and add-a-leaf option. It is configured for the 6 Bolt transfer case indexing ring.
Features
- Lift height: 8 in. front (coil spring), 5 in. rear
- Replacement crossmember hardware engineered for the new ride height
- BDS progressive-rate coil springs deliver the lift with a smooth, predictable ride
- Leaf springs engineered for the added lift and load-carrying duty
- Add-a-leaf option for extra rear height and load support
- New U-bolts sized for the lifted rear
- Includes NX2 Nitro Series shocks
- Clearance for tires up to 40 x 13.5 in.
Specifications
- Country of Origin (Primary)
- US
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Engine Type
- Diesel
- Front Lift Height
- 8 in.
- Front Lift Method
- Coil Spring
- Indexing Ring Option
- 6 Bolt
- Max Tire Size
- 40 x 13.5 in.
- Rear Lift Height
- 5 in.
- Rear Lift Option
- 5 in. Block Kit and Add-A-Leaf
- Shock Option
- NX2 Nitro Series
- Shocks Included
- Yes
