Description

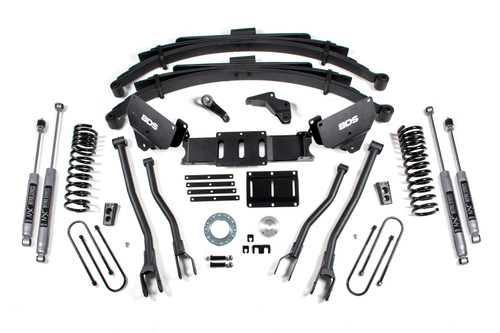

Built for drivers who want more clearance and a stronger stance, the 6 Inch Lift Kit w/ 4-Link | Ram 3500 (13-18) 4WD | Diesel | Leaf Springs / 6 Bolt / NX2 Nitro Series transforms your Ram 3500 (2013-2018) 4WD. It provides 6 in. of front lift. Once installed, it makes room for tires up to 37 x 12.5 in.
This version is matched with NX2 Nitro Series shocks for damping tuned to the new height. Rear lift is handled by the leaf springs option. It is configured for the 6 Bolt transfer case indexing ring.
Features
- Lift height: 6 in. front (coil spring)
- BDS progressive-rate coil springs deliver the lift with a smooth, predictable ride
- Fabricated steel lift blocks raise and level the rear
- New U-bolts sized for the lifted rear
- 4-link setup improves articulation and axle control over the factory design
- Lower control arms help locate the axle at the new ride height
- Includes NX2 Nitro Series shocks
- Clearance for tires up to 37 x 12.5 in.
Specifications
- Country of Origin (Primary)
- US
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Engine Type
- Diesel
- Front Lift Height
- 6 in.
- Front Lift Method
- Coil Spring
- Indexing Ring Option
- 6 Bolt
- Max Tire Size
- 37 x 12.5 in.
- Rear Lift Option
- Leaf Springs
- Shock Option
- NX2 Nitro Series
- Shocks Included
- Yes
