Description

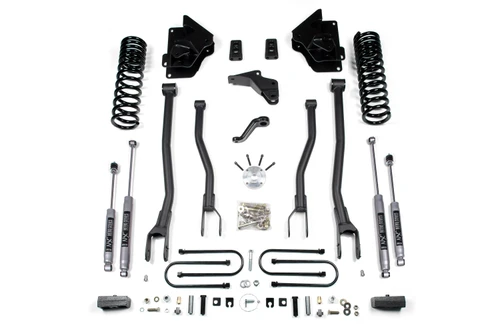

Built for drivers who want more clearance and a stronger stance, the 4 Inch Lift Kit w/ 4-Link | Ram 3500 (13-18) 4WD | Diesel | 3 Inch Block Kit / NX2 Nitro Series transforms your Ram 3500 (2013-2018) 4WD. It raises the front 4 in. and the rear 3 in. Once installed, it makes room for tires up to 37 x 12.5 in.
This version is matched with NX2 Nitro Series shocks for damping tuned to the new height. Rear lift is handled by the 3 in. block kit option.
Features
- Lift height: 4 in. front (coil spring), 3 in. rear (block)
- BDS progressive-rate coil springs deliver the lift with a smooth, predictable ride
- Fabricated steel lift blocks raise and level the rear
- New U-bolts sized for the lifted rear
- 4-link setup improves articulation and axle control over the factory design
- Lower control arms help locate the axle at the new ride height
- Includes NX2 Nitro Series shocks
- Clearance for tires up to 37 x 12.5 in.
Specifications
- Country of Origin (Primary)
- US
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Engine Type
- Diesel
- Front Lift Height
- 4 in.
- Front Lift Method
- Coil Spring
- Max Tire Size
- 37 x 12.5 in.
- Rear Lift Height
- 3 in.
- Rear Lift Method
- Block
- Rear Lift Option
- 3 in. Block Kit
- Shock Option
- NX2 Nitro Series
- Shocks Included
- Yes
