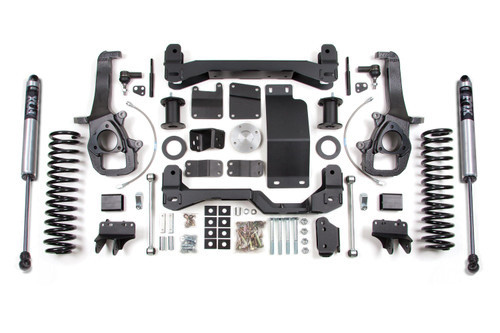

The 6 Inch Lift Kit | Ram 1500 (13-18) 4WD | 5 Inch Coil Springs / FOX 2.0 Performance Series is a complete suspension upgrade that raises your Ram 1500 (2013-2018) 4WD and makes room for larger rubber. It raises the front 6 in. and the rear 5 in. Once installed, it makes room for tires up to 37 x 12.5 in.
This version is matched with FOX 2.0 Performance Series shocks for damping tuned to the new height. Rear lift is handled by the 5 in. coil springs option.
Features
- Lift height: 6 in. front (cross-member), 5 in. rear (coil spring)
- Heavy 1/4 in. laser-cut steel crossmembers that keep the underside clear
- Front skid plate adds underbody protection and stiffens the front subframe
- CNC-machined ductile iron knuckles restore proper steering geometry at the taller height
- Differential drop brackets help keep CV and driveline angles in check
- Includes FOX 2.0 Performance Series shocks
- Clearance for tires up to 37 x 12.5 in.
- Life Cycle Status Code:
- 2
